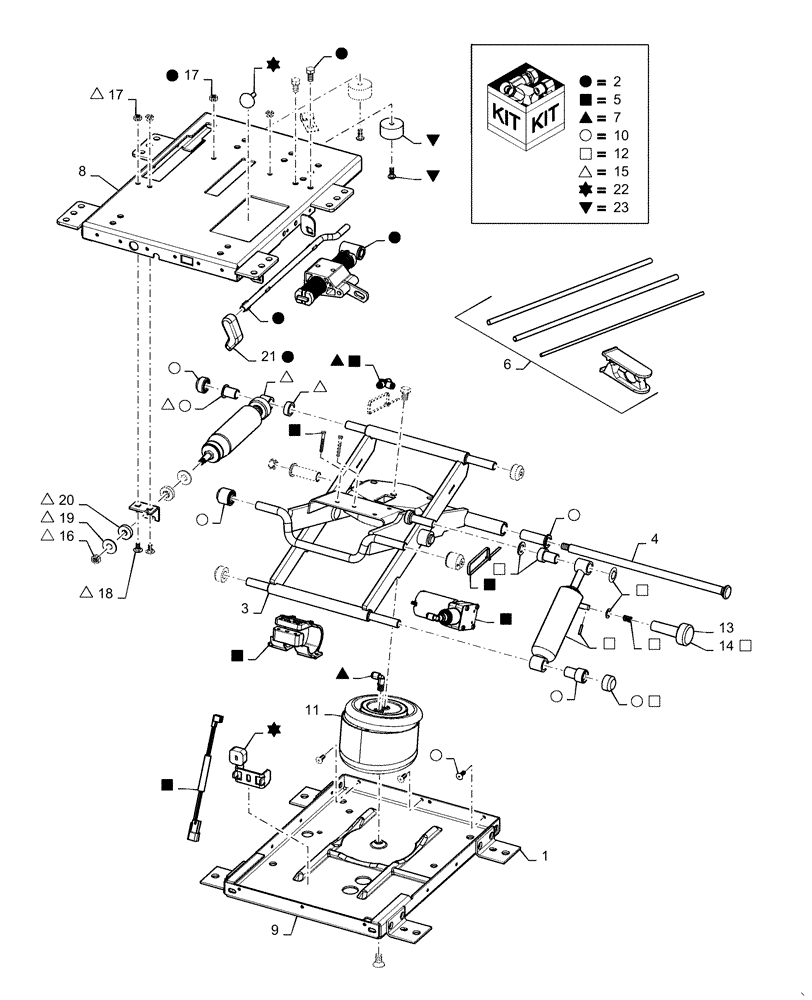

Запчасти Case IH 7240 (90.124.AN[01]) - VAR - 425187, 425555 - SEAT SUSPENSION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47368655

SERVICE KIT

Slide Stop

1шт.

2

84244765

SERVICE KIT

Isolator Latch, Incl 21

1шт.

3

1990643C1

FRAME ASSY

Scissor

1шт.

4

143786A1

SHAFT,308.9mm L

Bearing

1шт.

5

84427758

AIR COMPRESSOR KIT

Seat Suspension

1шт.

6

47368664

SERVICE KIT

Air Line Tubing

1шт.

7

47368666

SERVICE KIT

Air Line Fittings

1шт.

8

47368675

PLATE

Upper Housing

1шт.

9

47368682

SERVICE KIT

Lower Housing

1шт.

10

87347967

BEARING ASSY

Seat Kit

1шт.

11

47368706

SERVICE KIT

Air Spring

1шт.

12

87475837

SERVICE KIT

Adjustment Shock Absorber, Incl 13

1шт.

13

87347974

SERVICE KIT

Seat Adjustment Damper Knob

1шт.

14

47368724

SERVICE KIT

Shock Knob

1шт.

15

227546A1

KIT

Isolator Shock, Incl 16 - 20

1шт.

16

230-4715

LOCK NUT,5/16"-24, GA

1шт.

17

231-1444

NUT,1/4"-20, GB

2шт.

18

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

20

A49679

BUSHING

Shock Absorber

2шт.

21

84189454

SEAT ACCESSORY

Seat Control Knob

1шт.

22

84603019

KIT

Bumper

1шт.

23

84482049

KIT

Bumper, Incl 17

1шт.
