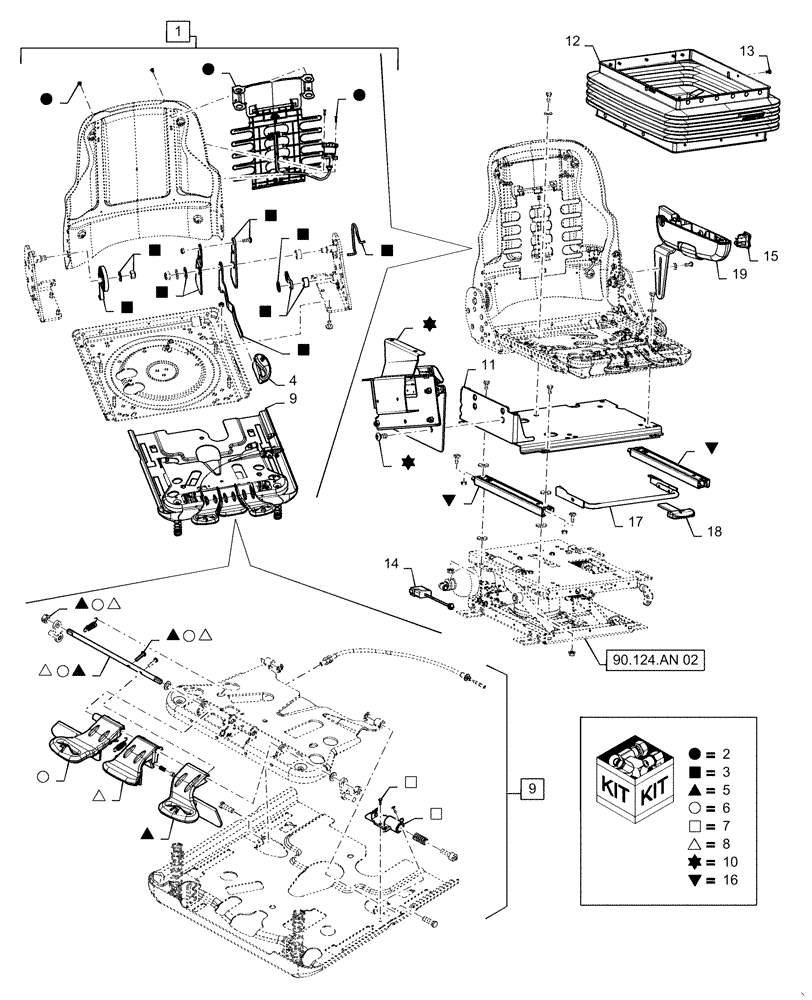

Запчасти Case IH 7240 (90.120.BA[02]) - VAR - 425555, 425556 - SEAT BACK, SLIDE, BELLOWS, LEATHER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47368382

DRIVER SEAT

Top, Incl 2 - 9

1шт.

2

47357018

KIT

Lumbar

1шт.

3

47357023

KIT

Recliner

1шт.

4

47357025

KNOB

Recliner

1шт.

5

47368606

SERVICE KIT

Tilt Knob

1шт.

6

47368613

SERVICE KIT

Extension Knob

1шт.

7

47368615

SERVICE KIT

Extension Tube

1шт.

8

47368628

SERVICE KIT

Swivel Knob

1шт.

9

47368635

SERVICE KIT

Extension Tilt, No Swivel, Incl 5 - 8

1шт.

10

47368659

SERVICE KIT

Console

1шт.

11

47368661

SERVICE KIT

Console Mount

1шт.

12

84120495

KIT

Boot

1шт.

13

87347976

SERVICE KIT

Boot Clip

1шт.

14

87347964

SERVICE KIT

Harness, Seat Suspension, VAR - 425555

1шт.

14

87347944

SERVICE KIT

Harness, Seat Suspension, VAR - 425556

1шт.

15

87347940

ROCKER SWITCH

Seat Combo Valve

1шт.

16

87410077

SERVICE KIT

Slide Rail

1шт.

17

47776512

KIT

Slide Release

1шт.

18

47776513

KIT

Slide Knob

1шт.

19

47776517

KIT

Armrest Lower Housing, LH

1шт.
