Запчасти Case IH 7240 (90.118.BM[02]) - VAR - 425358 - ELECTRIC MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

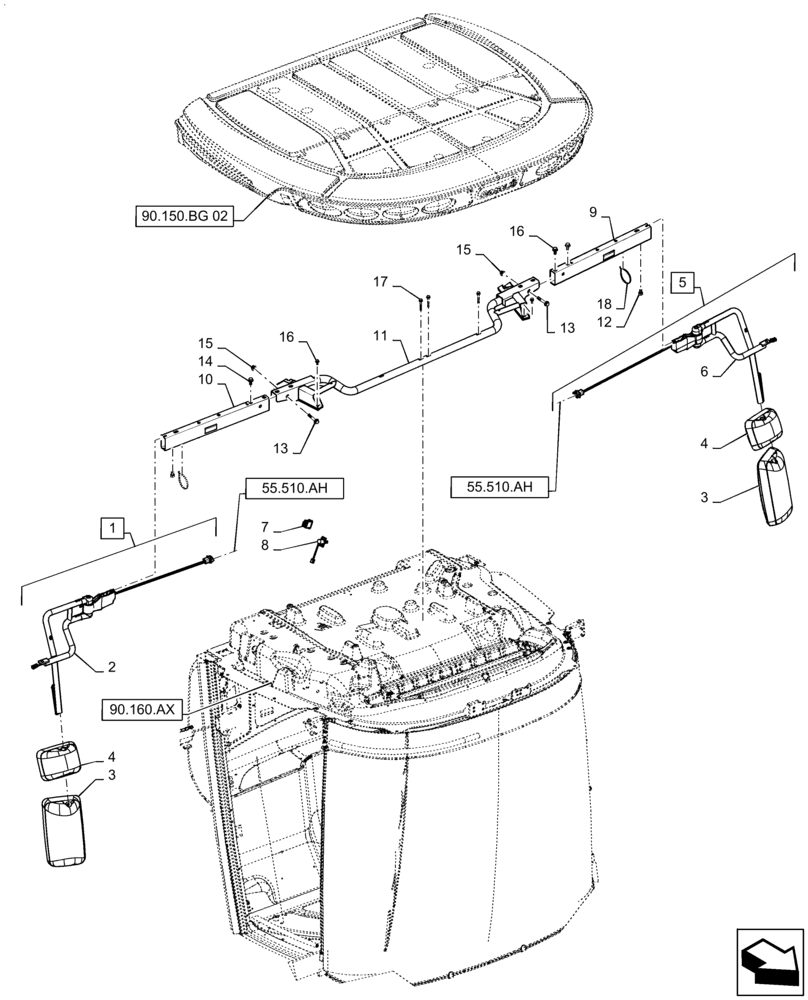

Схема запчастей Case IH 7240 - (90.118.BM[02]) - VAR - 425358 - ELECTRIC MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
3
3
18
7
8
6
1
15
12
11
16
15
4
13
5
10
55.510.ah
90.160.ax
4
17
55.510.ah
14
90.150.bg 02
16
2
9

Артикул

Название

Примечание

Количество

1

47406334

MIRROR ARM

RH, Incl 2 - 4

1шт.

2

84548136

TUBE

RH, Mirror

1шт.

3

84379447

REAR VIEW MIRROR,204.72mm x 653mm

Main

2шт.

4

84379458

REAR VIEW MIRROR

Wide

2шт.

5

47406335

MIRROR ARM

LH, Incl 3 - 4, 6

1шт.

6

84548138

SUPPORT

LH, Mirror

1шт.

7

84380251

SWITCH

Rocker, Mirror Heat

1шт.

8

84380253

SWITCH

Rotary, Mirror Adjustment

1шт.

9

47404694

SUPPORT

LH, Mirror

1шт.

10

47404696

SUPPORT

RH, Mirror

1шт.

11

47392095

SUPPORT

Mirror, Bar/Roof Support

1шт.

12

84552992

SET SCREW,M12 x 1.75 x 20mm OAL, 10.9

2шт.

13

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

14

87343550

FLANGE BOLT,Hex, M12 x 25mm

4шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

17

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

Выбрано товаров: 18
