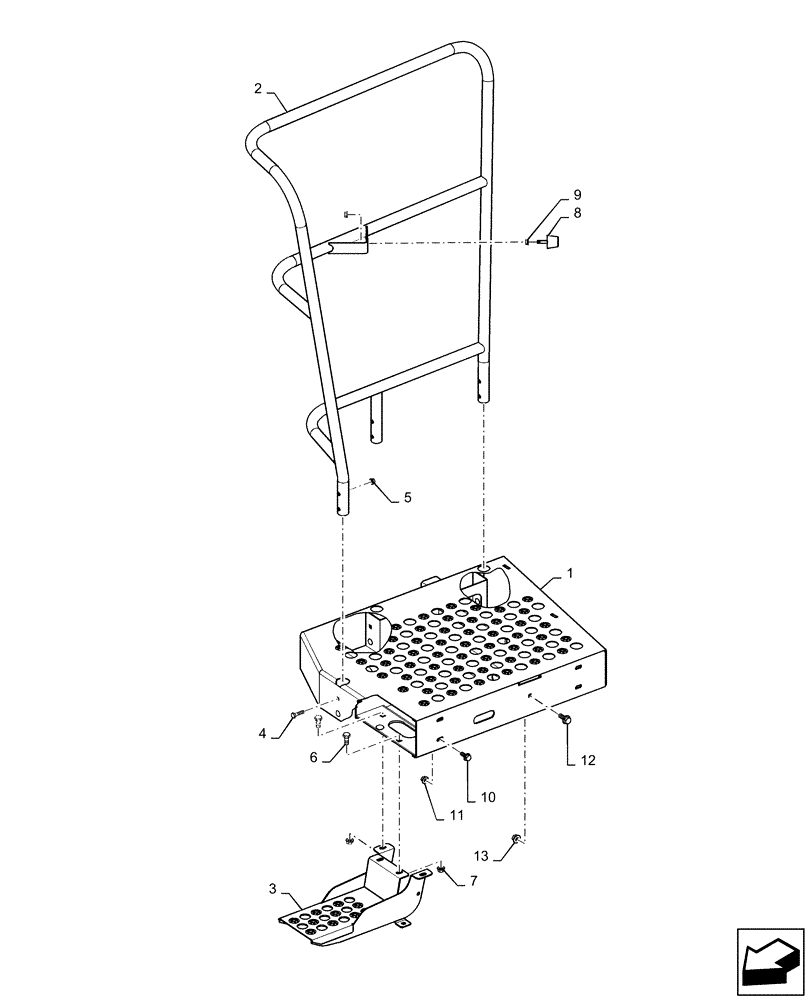

Запчасти Case IH 7240 (90.118.AC[03]) - PLATFORM, FRONT, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84547915

PLATFORM

RH, Operators

1шт.

2

84583733

HANDRAIL

RH, Operators Platform

1шт.

3

84547510

STEP

Access

1шт.

4

87682389

CARRIAGE BOLT,M8 x 1.25 x 50mm, Cl 10.9

6шт.

5

87681210

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

6

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

4шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

8

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

1шт.

9

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

10

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.
