Запчасти Case IH 7240 (90.116.AA[02]) - VAR - 425528, 425529, 425609, 425636, 425637, 425368 - SHIELD, LOWER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

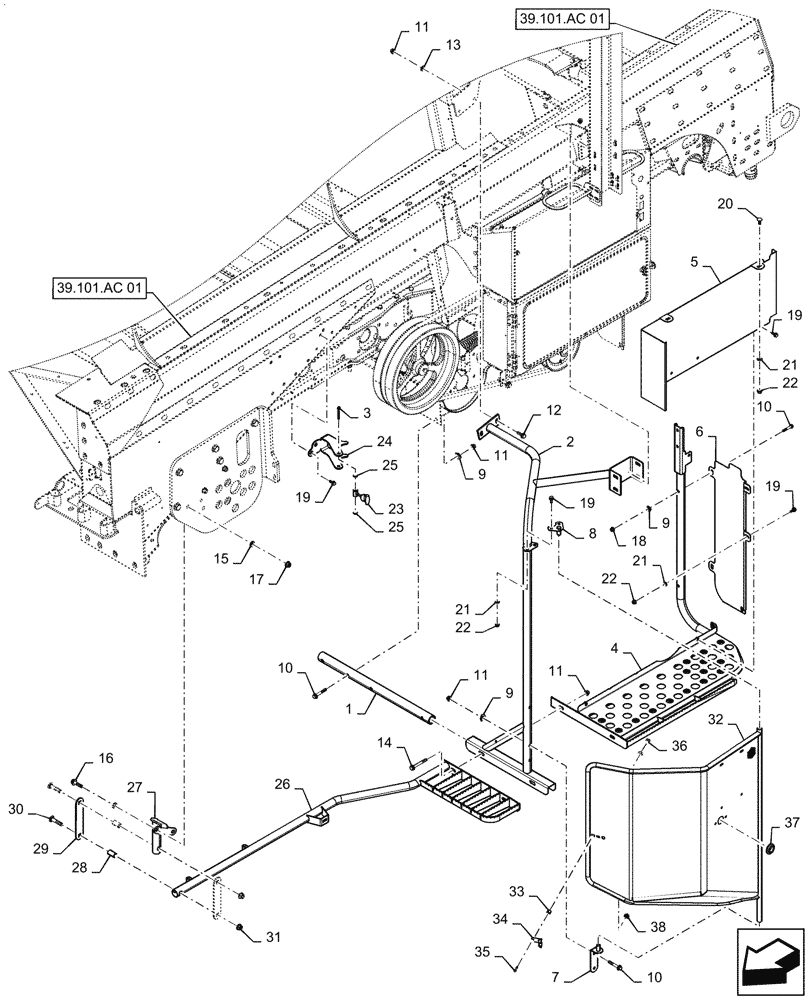

Схема запчастей Case IH 7240 - (90.116.AA[02]) - VAR - 425528, 425529, 425609, 425636, 425637, 425368 - SHIELD, LOWER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac 01
37
35
36
19
9
19
9
11
9
28
4
8
6
15
22
20
29
30
11
13
19
7
27
10
26
25
1
5
34
3
21
2
38
19
25
24
22
10
31
12
11
16
33
11
22
21
14
21
17
32
23
18
10
39.101.ac 01

Артикул

Название

Примечание

Количество

1

86976334

TUBE,39.69 mm OD x 650 mm L

1шт.

2

84295409

SUPPORT

Center, LH

1шт.

3

87400

COTTER PIN,3/16" x 2"

1шт.

4

84518899

PLATFORM

Step

1шт.

5

84518905

SHIELD

Drive

1шт.

6

84518909

SHIELD

Side

1шт.

7

84399930

PLATE

Hinge

1шт.

8

84395308

BRACKET

Upper Shielding Support

1шт.

9

379401

WASHER,11mm ID x 30mm OD

6шт.

10

87656139

BOLT,M10 x 70.4mm, Cl 10.9

6шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

10шт.

12

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

87698842

BOLT,Hex, M10 x 80mm, Cl 10.9

2шт.

15

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

16

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

2шт.

17

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

23

494307C1

LATCH

Hood Hook

1шт.

24

47600149

BRACKET

Shaker Door Hook Hood

1шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

47429740

STEP

Lower, Front, LH

1шт.

27

47601181

SUPPORT

Lower Step, Front, LH

1шт.

28

47536030

SPACER

2шт.

29

47536032

PLATE

2шт.

30

87495309

CARRIAGE BOLT,M12 x 1.75 x 66.8mm, Cl 10.9

2шт.

31

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

2шт.

32

47699212

PANEL

Shaker Pulley Shield Door

1шт.

33

1277909C1

SPACER

Panel Hook

2шт.

34

764071C2

BRACKET

Hook

1шт.

35

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

36

86508813

NUT,M5, Cl 8

2шт.

37

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

38

86975394

BUMPER

Rubber

3шт.

Выбрано товаров: 38
