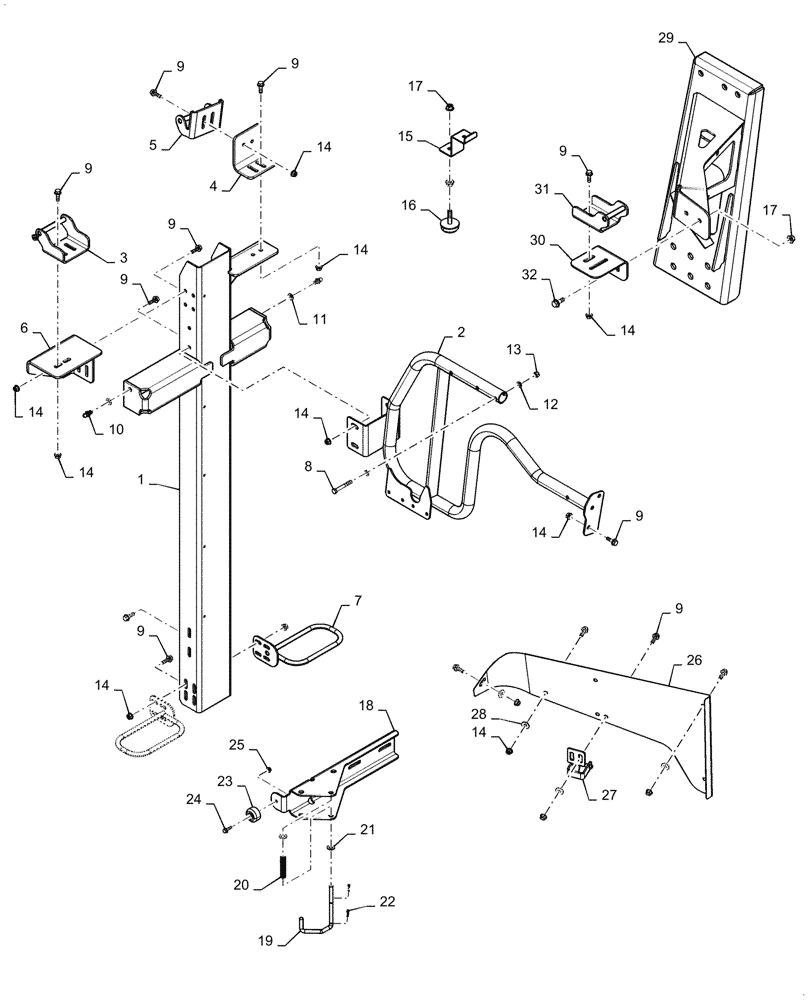

Запчасти Case IH 7240 (90.110.AU[04]) - BUMPER, MOUNTING PARTS, PANEL SUPPORT, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87673766

BRACKET

Channel

1шт.

2

84520009

BRACKET, SUPPORTING

Tube Hinge

1шт.

3

87475020

BRACKET

Trim Panel

1шт.

4

87633205

BRACKET

Mount

1шт.

5

84318373

BRACKET

Trim Panel

1шт.

6

87684784

BRACKET

Latch Mount

1шт.

7

87728337

BRACKET

Striker

2шт.

8

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

9

87698833

BOLT,M8 x 33.1mm, Cl 10.9

38шт.

10

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

9628098

NUT,M8 x 1.25, Cl 10

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

38шт.

15

84223638

BRACKET

Rear Bumper Mount

1шт.

16

84440416

INSULATOR BLOCK

Rubber

1шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

18

47419467

BRACKET

Stop Lock

1шт.

19

47764095

PIN

Lock Panel

1шт.

20

192216A1

SPRING

Compression

1шт.

21

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

22

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

23

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

24

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

26

84336277

PROTECTION PLATE

Front, LH

1шт.

27

47398758

LATCH

Support

1шт.

28

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

7шт.

29

47519174

SUPPORT

Cradle

1шт.

30

84386382

SUPPORT

Shield Hinge

1шт.

31

87475017

BRACKET

Trim Panel

1шт.

32

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.
