Запчасти Case IH 7240 (80.175.AG[04]) - VAR - 425365 - TENSIONER (80) - CROP STORAGE/UNLOADING

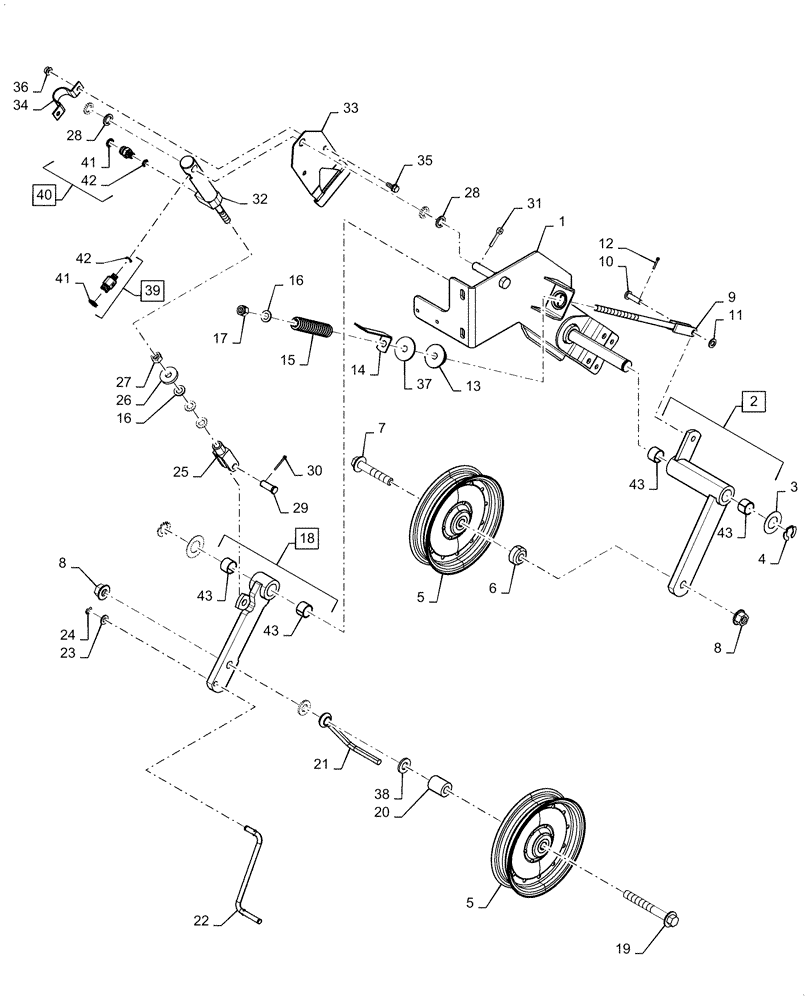

Схема запчастей Case IH 7240 - (80.175.AG[04]) - VAR - 425365 - TENSIONER (80) - CROP STORAGE/UNLOADING
32
17
19
43
43
29
42
34
37
41
40
31
4
30
11
8
41
14
35
2
25
5
24
1
15
10
12
42
7
8
13
28
5
16
6
9
3
36
39
27
43
28
16
23
18
38
26
21
43
22
20
33

Артикул

Название

Примечание

Количество

1

47429750

PLATE

Tensioner Support

1шт.

2

84233227

ARM

Tensioner, Front, Incl 43

1шт.

3

27317

WASHER,26mm ID x 51mm OD x 1.17mm Thk

2шт.

4

579497

CIRCLIP,M20

2шт.

5

86588003

IDLER,51.6mm W x 228.6mm OD

Wheel

2шт.

6

86598190

BUSHING,16.25mm ID x 40mm OD x 17mm OAL

1шт.

7

86511847

BOLT,M16 x 90mm, Cl 8.8

1шт.

8

9804280

FLANGE NUT,Hex, M16, Cl 8

2шт.

9

86587035

ROD

Tension Adjuster

1шт.

10

390040

COTTER PIN,10mm OD x 39mm L

1шт.

11

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

13

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

1шт.

14

86601493

INDICATOR

Tension

1шт.

15

87540186

SPRING,129.3mm Free Length

Compression, 18 Coils

1шт.

16

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

17

412126

NUT,M12 x 1.75

1шт.

18

84474938

ARM

Tensioner, Rear, Incl 43

1шт.

19

86511848

BOLT,Hex, M16 x 130mm, Cl 8.8

1шт.

20

84470572

SPACER

16.26mm ID x 31.8mm OD x 38.8mm Thk

1шт.

21

84470570

ADJUSTMENT ROD

Unloader Belt, Upper

1шт.

22

47410538

ROD

Unloader Drive Belt Upper

1шт.

23

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

24

100-3337

SNAP RING,E-Type, 0.3" OD

1шт.

25

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

26

189153A1

WASHER

Unloader Clutch Retainer

1шт.

27

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

28

87613215

WASHER,0.66" ID x 1" OD x 0.12" Thk

4шт.

29

86636813

CLEVIS PIN,1/2" OD x 1-9/25" OAL

1шт.

30

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

31

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

32

47429735

HYDRAULIC CYLINDER

Unload Clutch

1шт.

33

84172259

RETAINER

Unload Belt Idler Arm

1шт.

34

84226332

CLAMP

Unloader Retaining Plate

1шт.

35

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

37

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

1шт.

38

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

39

84330955

VALVE

Hydraulic In - line Orfice, Check, M12, Incl 41 - 42

1шт.

40

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

Incl 41 - 42

1шт.

41

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

42

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

43

84057311

BUSHING,25mm ID x 28mm OD x 20mm L

4шт.

Выбрано товаров: 43
