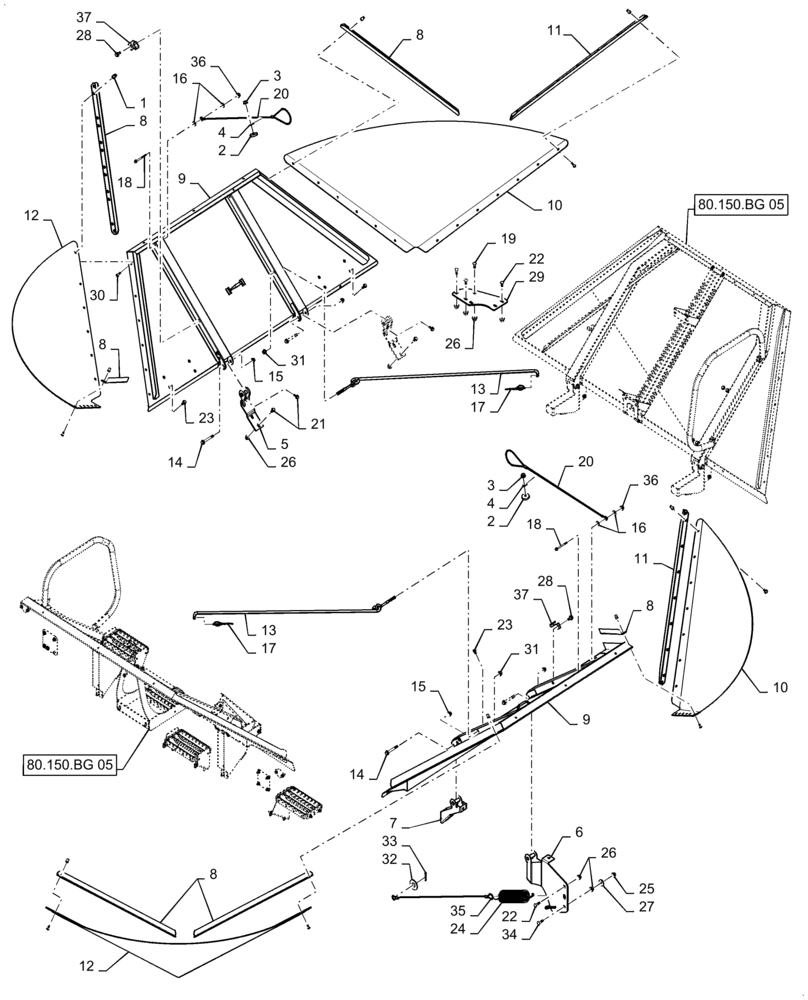

Запчасти Case IH 7240 (80.150.BG[04]) - VAR - 425371, 425367 - EXTENSION, GRAIN TANK, 410 BU (80) - CROP STORAGE/UNLOADING

1

86610200

THREADED INSERT,M8 x 1.25

50шт.

2

84394843

MAGNET,M6, 47mm OD

Cable

2шт.

3

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

4

134859

CLAMP,1/8" ID

Cable

2шт.

5

47619045

HINGE

LH, Grain Tank Extension

2шт.

6

47442127

HINGE

RH, Front, Grain Tank Extension

1шт.

7

47446873

HINGE

RH, Rear, Grain Tank Extension

1шт.

8

47625506

ANGLE

6шт.

9

84576513

EXTENSION

LH/RH, 34"

2шт.

10

47696738

SHEET,Rubber

Grain Tank, LH/RH Front, Extension

1шт.

11

47625502

ANGLE

2шт.

12

84586000

SEAL SHEET

Grain Tank, LH/RH Rear, Extention

2шт.

13

47673264

ROD

Prop

2шт.

14

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

4шт.

15

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

17

87106279

PIN,6.4mm OD

2шт.

18

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

2шт.

19

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

20

47486345

CABLE,900mm L

Assy

2шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

22

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

5шт.

23

87021006

BOLT,M10 x 26.4mm, Cl 10.9

20шт.

24

86975571

SPRING,Extension, 72.4mm OD x 356mm L

1шт.

25

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

26

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

27

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

28

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

29

84510384

PLATE

Grain Tank Extention, Mounting

1шт.

30

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

50шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

32

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1шт.

33

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

34

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

1шт.

35

47788187

CABLE,1010mm L

1шт.

36

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

37

86976901

CLIP

Prop Rod

2шт.
