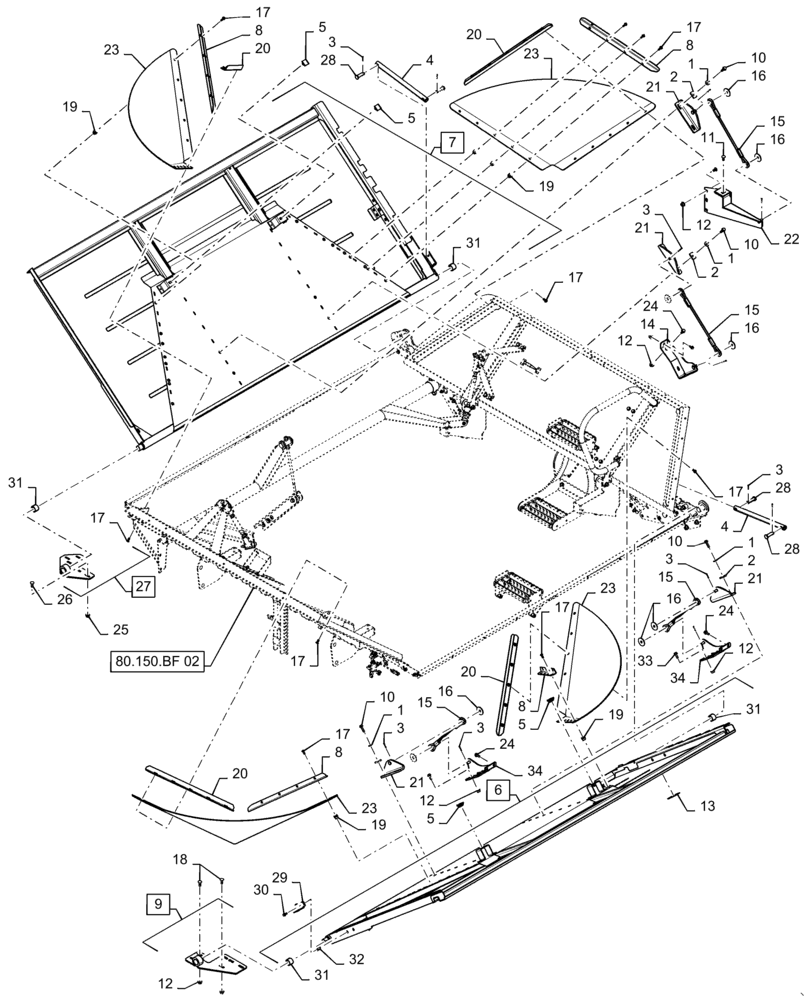

Запчасти Case IH 7240 (80.150.BF[01]) - VAR - 425373 - COVER ASSY, GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

86589279

BELLEVILLE WASHER,M10 Bolt Size x 24mm OD x 3mm Thk

8шт.

2

87605597

WASHER,11mm ID x 6mm Thk

8шт.

3

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

12шт.

4

84152697

UPPER LINK,17.46mm ID x 423mm L

2шт.

5

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

4шт.

6

47598775

COVER

LH, Grain Tank, Incl 13, 31 - 32

1шт.

7

47766847

COVER

RH, Grain Tank, Incl 31

1шт.

8

84165687

ANGLE

4шт.

9

84510306

HINGE

LH, Incl 31

1шт.

10

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

8шт.

11

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

24шт.

13

84432904

DECAL

No Step

1шт.

14

47625518

SUPPORT

RH, Rear, Cable Anchor

1шт.

15

47983277

CABLE

4шт.

16

87613264

WASHER,0.53" ID x 2" OD x 0.12" Thk

8шт.

17

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

32шт.

18

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

6шт.

19

86610200

THREADED INSERT,M8 x 1.25

16шт.

20

86975516

ANGLE

4шт.

21

47625514

ANGLE

Upper Anchor Stop

4шт.

22

84187736

BRACKET

RH, Front, Anchor Stop

1шт.

23

86975520

SHEET

Grain Tank, Corner

4шт.

24

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

9шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

26

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

5шт.

27

84187744

HINGE

RH, Incl 31

1шт.

28

362528

CLEVIS PIN,M16 x 55mm OAL

4шт.

29

47604849

BRACKET

Sensor Cover

1шт.

30

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

31

87556665

BEARING,31.773mm ID x 35.7mm OD x 25.4mm Thk

4шт.

32

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

2шт.

33

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

34

47625511

CABLE EXTENSION

Anchor, Bracket

2шт.
