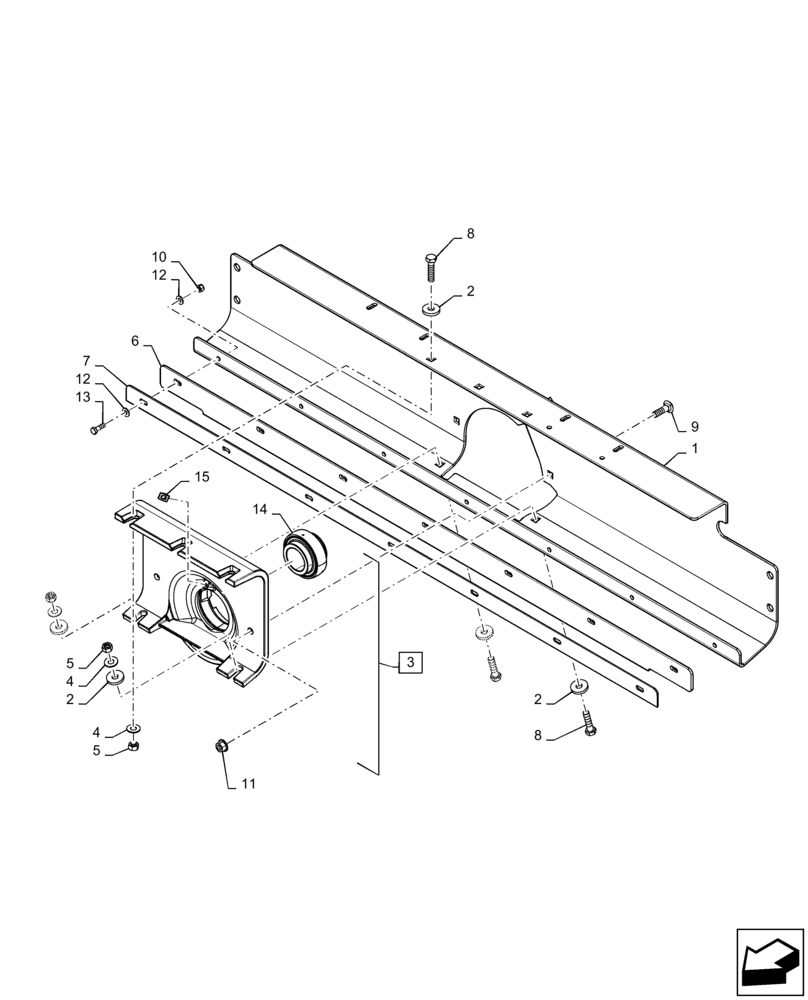

Запчасти Case IH 7240 (66.331.AL[01]) - VAR - 425388, 722751, 425292, 425293, 425101, 425190 - MOUNTING PLATE, ROTOR (66) - THRESHING

1

87106336

CHANNEL

Rotor Support, Front

1шт.

2

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

3

48014410

HOUSING

Rotor, Incl 14 - 15

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

5

337475

NUT,M12, Cl 10

5шт.

6

87283403

SEAL,60mm W x 1508mm L

Feeder, 1508mm OAL x 60mm W x 5mm Thk

1шт.

7

86998407

SEAL PROTECTION

Retainer, 1508mm OAL x 40mm Thk

1шт.

8

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

5шт.

9

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

11

43436

FLANGE NUT,M12

2шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

14

87324171

BALL BEARING,50.8mm ID x 100mm OD x 25mm W

1шт.

15

87020437

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1шт.
