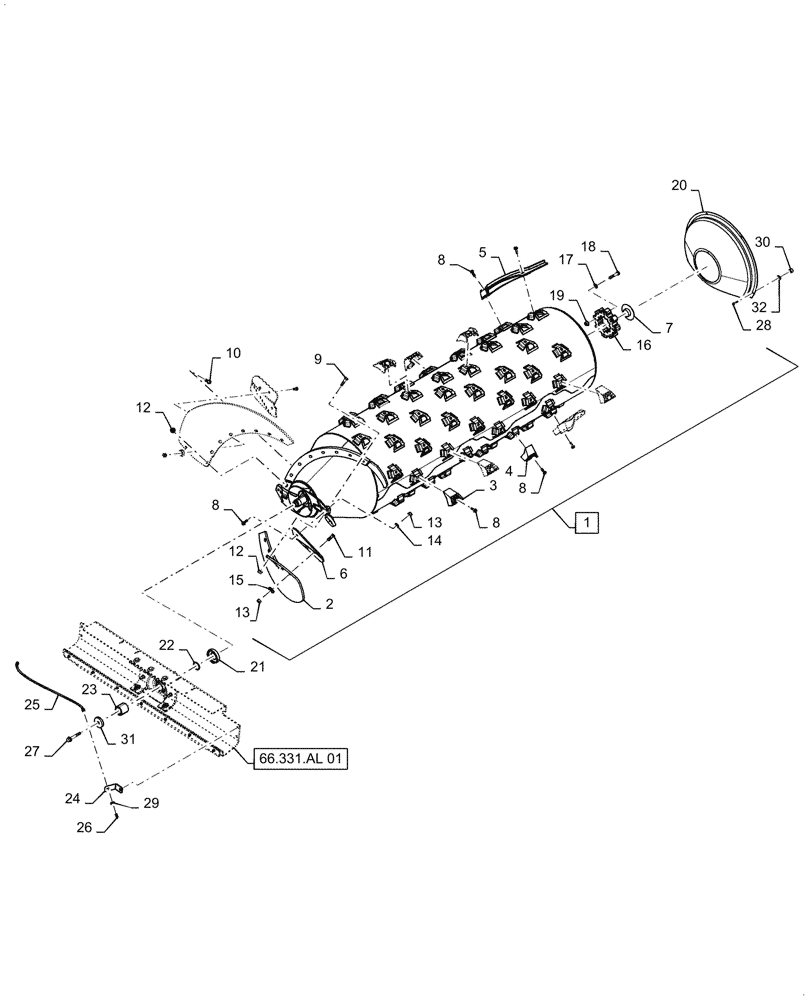

Запчасти Case IH 7240 (66.331.AK[02]) - VAR - 722751 - THRESHING CYLINDER, ROTOR (66) - THRESHING

1

47825896

ROTOR

Large Tube, 76 Element, Grain, ABR, Incl 2 - 16

1шт.

2

47825316

AUGER FLIGHT

Hardened

2шт.

3

278821A3

RASP BAR

W/O Spike, Extended Wear

64шт.

4

278820A5

RASP BAR

W/ Spike, Extended Wear

8шт.

5

86992048

BAR

Helical Kicker

2шт.

6

47802681

PLATE

Wear, Rotor

2шт.

7

87697368

PLASTIC PLUG

Dust Cover

1шт.

8

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

9

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

2шт.

10

87394282

PLOW BOLT,M16 x 55mm, Cl 10.9

14шт.

11

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

4шт.

12

86512380

FLANGE NUT,M16

16шт.

13

412672

NUT,Hex, M12 x 1.75, Cl 10

6шт.

14

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

15

87315598

SHIELD

Nut

4шт.

16

84222993

SPLINED COUPLING,12T

Rotor Drive

1шт.

17

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

18

86577946

BOLT,Hex, M16 x 80mm x 10.9

8шт.

19

86512380

FLANGE NUT,M16

8шт.

20

87744743

COVER ASSY

Cone

1шт.

21

87323577

RING

Reluctor Wheel, Rotor Speed

1шт.

22

87284474

SHIM,51.18mm ID x 59.7mm OD x 1mm Thk

1шт.

23

87281633

SPACER,50.88mm ID x 66.68mm OD x 44mm L

1шт.

24

87107260

SUPPORT

Lube Hose

1шт.

25

87107259

HOSE,3.02mm ID x 737mm L

1шт.

26

87414

LUBE NIPPLE,1/4" - 28

1шт.

27

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

1шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

29

134814

NUT,11/16"

1шт.

30

9706690

NUT,M8 x 1.25, Cl 8

4шт.

31

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.
