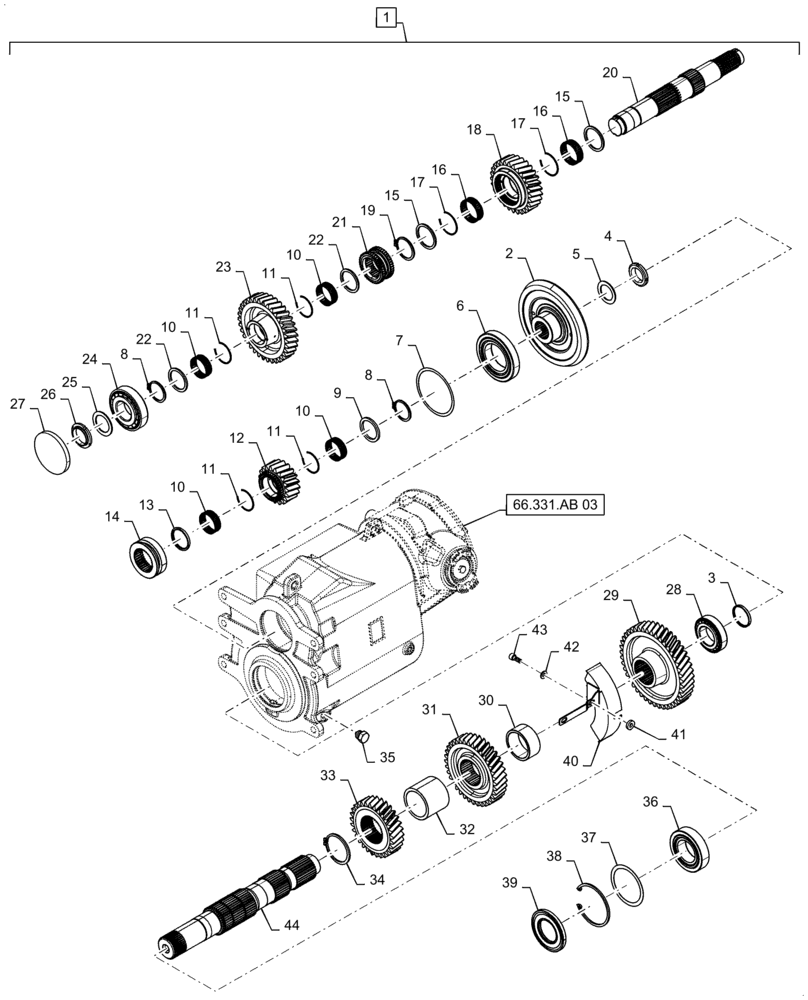

Запчасти Case IH 7240 (66.331.AB[04]) - GEARBOX, ROTOR, GEAR SHAFT (66) - THRESHING

1

47672613

GEARBOX

Rotor, Incl 2 - 44, Class 7, 8

1шт.

1

47411101

GEARBOX

Rotor, Incl 2 - 44, Class 9

1шт.

2

87688722

GEAR SET,Bevel, 41 Tooth/18 Tooth

41 Tooth/18 Tooth

1шт.

2

47411084

GEAR SET

41 Tooth/18 Tooth

1шт.

3

87280587

PLUG

62.2mm OD x 7mm Thk

1шт.

4

87031062

BEARING LOCK NUT,M45 x 1.5

1шт.

5

87281243

THRUST WASHER

45.3mm ID x 65.3mm OD x 2.5mm Thk

1шт.

6

87280579

BEARING ASSY,80mm ID x 140mm OD x 28.25mm W

1шт.

7

87743036

SHIM,125mm ID x 140mm OD x 0.5mm Thk

125mm ID x 140mm OD x 0.5mm Thk

1шт.

7

87743035

SHIM,125mm ID x 140mm OD x 0.3mm Thk

125mm ID x 140mm OD x 0.3mm Thk

1шт.

7

87743034

SHIM,125mm ID x 140mm OD x 0.15mm Thk

125mm ID x 140mm OD x 0.15mm Thk

1шт.

7

87743033

SHIM,125mm ID x 140mm OD x 0.1mm Thk

125mm ID x 140mm OD x 0.1mm Thk

1шт.

8

800-5155

SNAP RING,M55 x 3mm Thk, External

2шт.

9

87684703

THRUST WASHER

55.1mm ID x 69mm OD x 5mm Thk

1шт.

10

87280994

NEEDLE BEARING,55mm ID x 60mm OD x 20mm Thk

4шт.

11

87280998

SNAP RING,59.9mm ID x 1.5mm Thk, Internal

4шт.

12

87684701

GEAR

Drive, First, 19 Tooth

1шт.

13

87684704

THRUST WASHER,55.2mm ID x 64.8mm OD x 5mm Thk

55.2mm ID x 64.8mm OD x 5mm Thk

1шт.

14

87282384

COLLAR,31T / 38T

Shift, First Gear

1шт.

15

87282385

THRUST WASHER

60.3mm ID x 71.7mm OD x 3.5mm Thk

2шт.

16

87280992

NEEDLE BEARING,60 mm ID x 65 mm OD x 20 mm

2шт.

17

87280999

SNAP RING,60mm ID x 65mm OD x 20mm Thk

59.9mm ID x 1.5mm Thk, Internal

2шт.

18

87282386

GEAR

Driver, Second, 28 Tooth

1шт.

19

86625143

RING,M60 x 3mm Thk, External

1шт.

20

87684680

SHAFT

Intermediate

1шт.

21

87280583

COLLAR,28T Internal / 40T External

Shift, Second/Third Gear

1шт.

22

87282496

THRUST WASHER

55.3mm ID x 67.7mm OD x 3.5mm Thk

2шт.

23

87684677

GEAR

Driver, Third, 34 Tooth

1шт.

24

86509784

BEARING ASSY,55mm ID x 120mm OD x 31.5mm W

55mm ID x 120mm OD x 31.5mm Thk

1шт.

25

87031063

THRUST WASHER

50.3mm ID x 70.3mm OD x 2.5mm Thk

1шт.

26

87020897

BEARING LOCK NUT,M50 x 1.5

1шт.

27

375413A1

CAP

Cover, 120mm OD x 12mm

1шт.

28

87280588

BEARING ASSY,55mm ID x 100mm OD x 26.75mm W

1шт.

28

47411090

BEARING ASSY,55mm ID x 100mm OD x 35mm Thk

1шт.

29

87280589

GEAR

Driven, First, 43 Tooth

1шт.

30

87280590

SPACER

First/Second Gear

1шт.

31

87280591

GEAR

Driven, Second, 36 Tooth

1шт.

32

87280592

SPACER

Second/Third Gear

1шт.

33

87684678

GEAR

Driven, Third, 29 Tooth

1шт.

34

800-5180

SNAP RING,M80 x 3mm Thk, External

1шт.

35

87108781

PLUG

Drain, M22

1шт.

36

87281035

BEARING ASSY,65mm ID x 120mm OD x 32.75mm W

1шт.

36

47411091

BEARING ASSY,65mm ID x 120mm OD x 41mm Thk

1шт.

37

87033543

SHIM,100mm ID x 120mm OD x 0.5mm Thk

100mm ID x 120mm OD x 0.5mm Thk

1шт.

37

87033542

SHIM,100mm ID x 120mm OD x 0.3mm Thk

100mm ID x 120mm OD x 0.3mm Thk

1шт.

37

87033541

SHIM,100mm ID x 120mm OD x 0.15mm Thk

100mm ID x 120mm OD x 0.15mm Thk

1шт.

37

87033538

SHIM,100mm ID x 120mm OD x 0.1mm Thk

100mm ID x 120mm OD x 0.1mm Thk

1шт.

38

412270

SNAP RING,M120 x 4mm Thk, Internal

1шт.

39

87020821

OIL SEAL,65mm ID x 120mm OD x 10mm Thk

65mm ID x 120mm OD x 10mm Thk

1шт.

40

87280599

WRAPPER

Oil Deflector

1шт.

41

87281116

SPACER

10.8mm ID x 25mm OD x 6mm OAL

1шт.

42

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

43

86625209

HEX SOC SCREW,M10 x 35mm, Cl 12.9

2шт.

44

47672693

SHAFT

Output, 39 Tooth, Class 7/ 8

1шт.

44

47672689

SHAFT

Output, 39 Tooth, Class 9

1шт.
