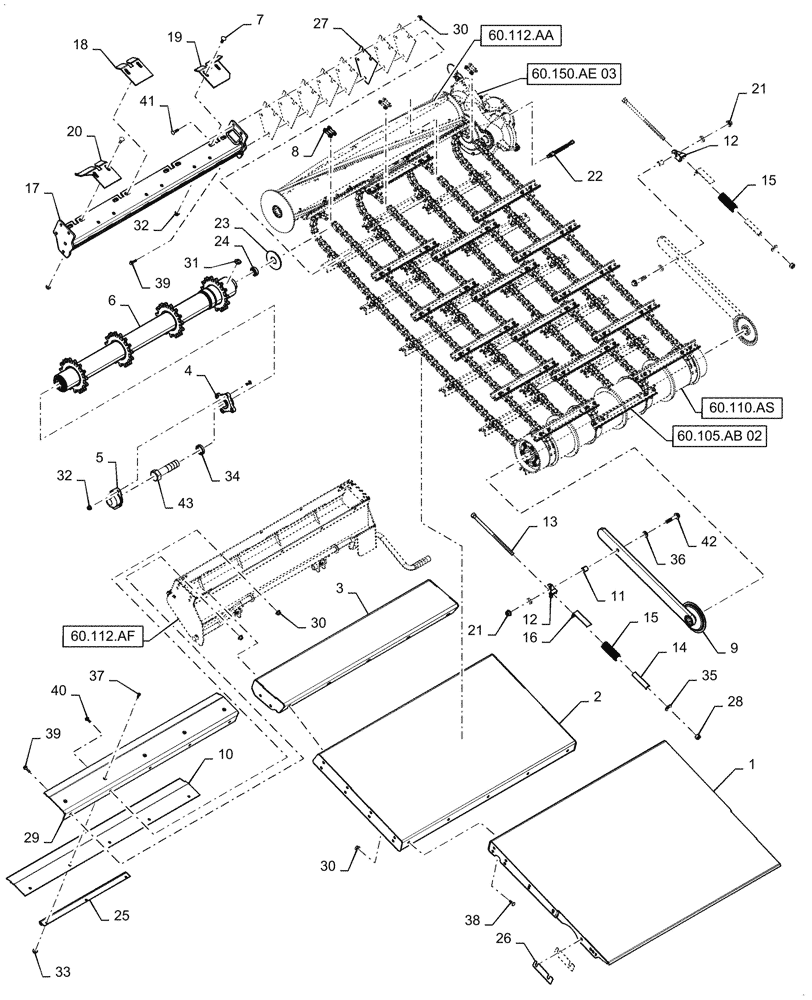

Запчасти Case IH 7240 (60.150.AF[02]) - VAR - 425070, 425225, 425547, 425549, 722744 - CHAIN, DRUM, FEEDER (60) - PRODUCT FEEDING

1

84140379

FLOOR

Front

1шт.

2

87282537

FLOOR

Center

1шт.

3

84376397

FLOOR

Rear

1шт.

4

86995212

BEARING ASSY

Beater/Chain Sprocket

2шт.

5

86996082

COVER

Bearing

2шт.

6

47888098

KIT

Sprocket, Rock Trap, 15T

1шт.

Incl Stripper Plates

1шт.

7

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

8шт.

8

84257096

LINK,41.4mm Pitch, Threaded Pin

Connecting

4шт.

9

87660200

ARM ASSY.

Drum

2шт.

10

87533210

SEAL

Rock Trap Sump

1шт.

11

87021332

SPACER,17mm ID x 25mm OD x 27mm L

2шт.

12

84265054

BRACKET

Indicator

2шт.

13

84155550

THREADED ROD

Indicator

2шт.

14

84157715

TUBE

Spacer

2шт.

15

693887

SPRING

Compression

2шт.

16

84163120

BRACKET

Indicator

2шт.

17

47961369

SUPPORT

Stripper

1шт.

18

47963654

PLATE

Center, 15T

2шт.

19

48001642

PLATE

LH, 15T

1шт.

20

48001329

PLATE

RH, 15T

1шт.

21

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

22

87662555

SENSOR

Feeder Speed

1шт.

23

47510326

SEAL

Brush

2шт.

24

84415750

FELT SEAL

Sprocket End

1шт.

25

87537644

CHANNEL

Seal Support

1шт.

26

84558304

SHIM,50mm OD x 1.32mm Thk

Floor

4шт.

27

87667405

SHIM,140mm OD x 1.2mm Thk

8шт.

28

412066

NUT,M16 x 2.0, Cl 8

2шт.

29

87730305

FLOOR

Rear

1шт.

30

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

31

84334828

DECAL

Sprocket

1шт.

32

86512497

FLANGE NUT,M12 x 1.75, Cl 10

20шт.

33

87681210

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

34

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

2шт.

35

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

36

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

37

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

38

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

19шт.

39

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

40

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

41

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

2шт.

42

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

43

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

2шт.
