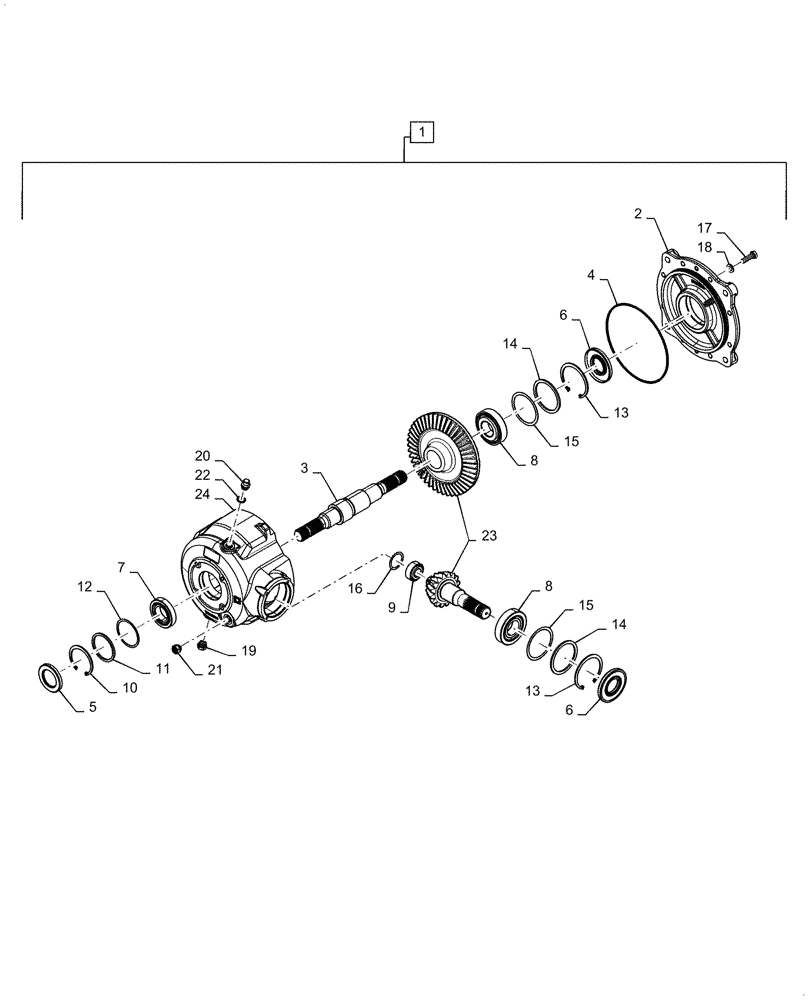

Запчасти Case IH 7240 (60.120.AR) - GEARBOX, HEADER (60) - PRODUCT FEEDING

1

47614948

GEARBOX

Header, Incl 2 - 24

1шт.

2

87449555

COVER

Gearbox

1шт.

3

47615739

SHAFT

Output

1шт.

4

238-5271

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

1шт.

5

87610910

OIL SEAL,45mm ID x 85mm OD x 10mm Thk

1шт.

6

87610911

OIL SEAL,45mm ID x 100mm OD x 10mm Thk

2шт.

7

86018152

BEARING ASSY,45mm ID x 85mm OD x 20.75mm W

1шт.

8

87449570

BEARING ASSY,45mm ID x 100mm OD x 27.25mm W

2шт.

9

81864433

BEARING ASSY,24.99mm ID x 52mm OD x 22.2mm W

1шт.

10

370021

SNAP RING,M85 x 3mm Thk, Internal

1шт.

11

87449557

SPACER,74mm ID x 84.8mm OD x 4mm L

1шт.

12

87449564

SHIM KIT

75mm x 85mm

1шт.

13

370026

SNAP RING,M100 x 3mm Thk, Internal

2шт.

14

87449558

SPACER,85.2mm ID x 99.8mm OD x 4mm L

2шт.

15

87449569

SHIM KIT

85mm x 100mm

2шт.

16

87449559

SHIM KIT

42mm x 52mm

1шт.

17

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

8шт.

18

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

19

87282043

MAGNETIC PLUG

Drain

1шт.

20

87282044

PLUG,M18 x 1.5, 28mm L

1шт.

21

87282045

SIGHTGLASS

Plug

1шт.

22

42283

SEALING RING

18mm x 24mm

1шт.

23

87449573

BEVEL GEAR

Set, 16T/45T

1шт.

24

87449554

HOUSING

Gearbox

1шт.
