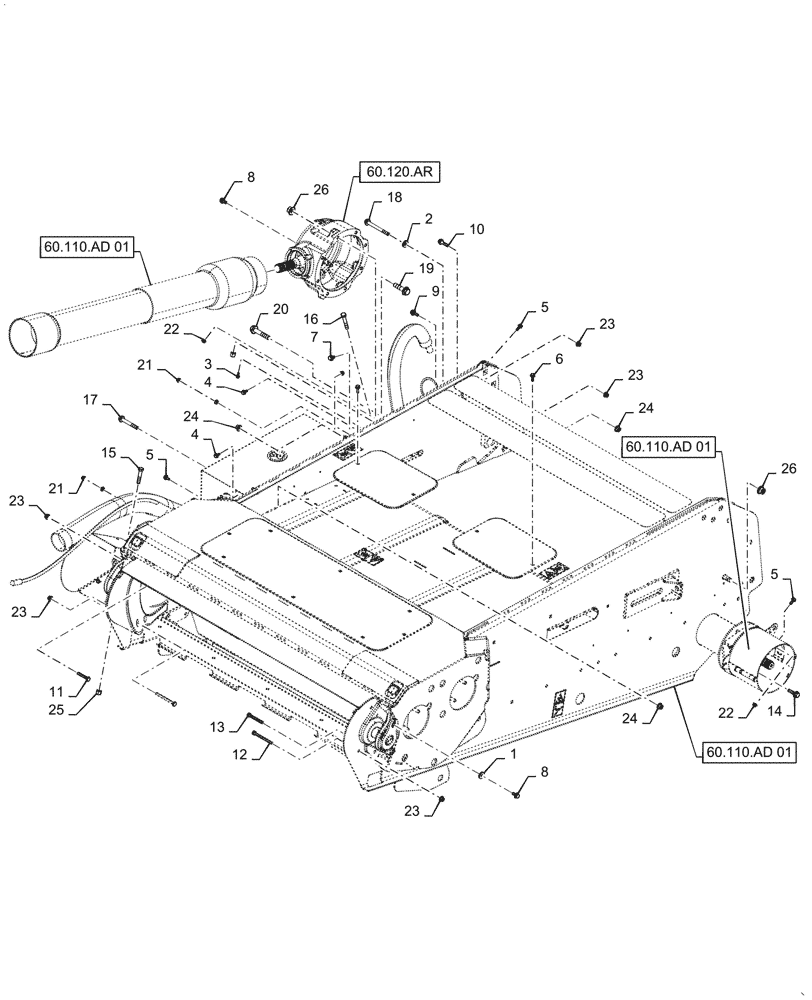

Запчасти Case IH 7240 (60.110.AD[02]) - VAR - 425070, 425546, 425547, 425548, 425549, 425224, 425225, 722742, 722477 - FEEDER FRAME, FASTENER (60) - PRODUCT FEEDING

1

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

2

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

4шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

4

87681207

BOLT,M8 x 24.1mm, Cl 10.9

9шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

VAR 425546, 425547, 425548, 425549, 425224, 425225, 722742, 722744

5шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

VAR 425070

3шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

10шт.

7

87021006

BOLT,M10 x 26.4mm, Cl 10.9

8шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

14шт.

10

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

12шт.

11

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

12

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

13

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

14

87695413

BOLT,M12 x 51.8mm, Cl 10.9

VAR 425546, 425547, 425548, 425549, 425224, 425225, 722742, 722744

4шт.

14

87695413

BOLT,M12 x 51.8mm, Cl 10.9

VAR 425070

2шт.

15

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

4шт.

16

87301326

BOLT,M12 x 1.75 x 82.68mm, Cl 10.9

2шт.

17

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

1шт.

18

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

1шт.

19

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

20

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

4шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

VAR 425546, 425547, 425548, 425549, 425224, 425225, 722742, 722744

6шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

VAR 425070

4шт.

23

86050279

FLANGE NUT,M10 x 1.5, Cl 10

32шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

5шт.

25

87021758

NUT,M12 x 1.75, Cl 10

6шт.

26

86512498

FLANGE NUT,M16 x 2, Cl 10

6шт.
