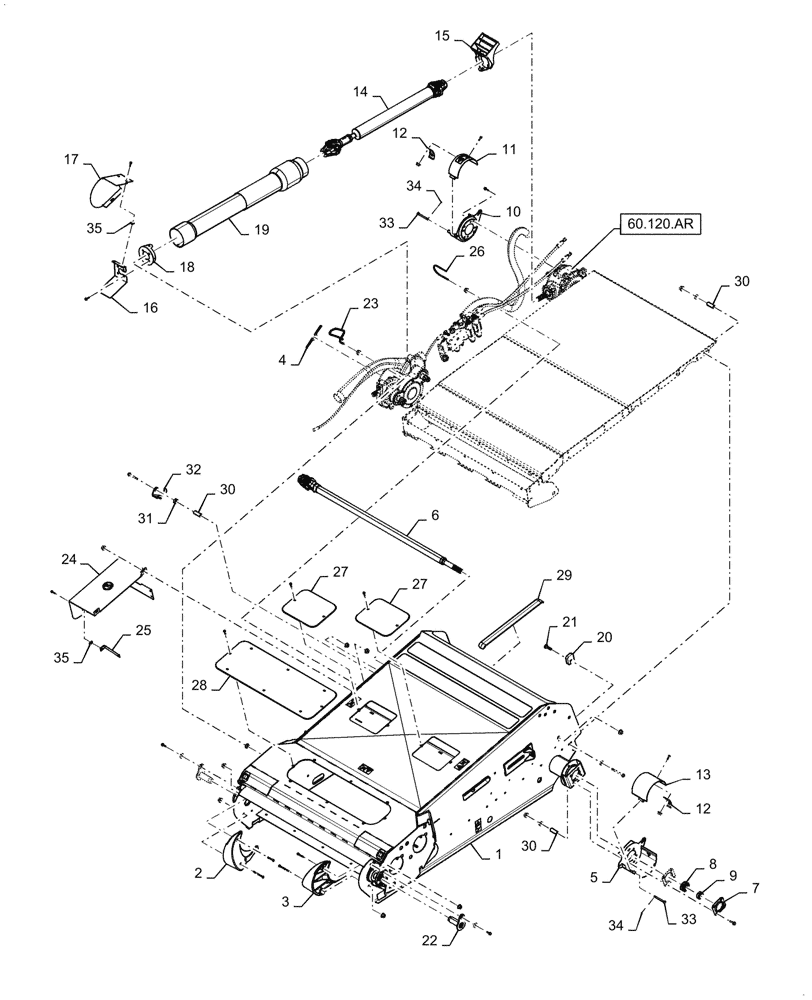

Запчасти Case IH 7240 (60.110.AD[01]) - VAR - 425070, 425546, 425547, 425548, 425549, 425224, 425225, 722742, 722744 - FEEDER FRAME (60) - PRODUCT FEEDING

1

47840952

FEEDER

Housing, VAR 425224, 425225, 722742, 722744, 425070

1шт.

1

47840949

FEEDER

Housing, VAR 425546, 425547, 425548, 425549

1шт.

2

87662508

DEFLECTOR

Front, LH

1шт.

3

87662509

DEFLECTOR

Front, RH

1шт.

4

84405054

DECAL

Oil Level, Gearbox Sight Glass

1шт.

5

47983728

SHIELD

RH Lower, VAR 425224, 425225, 722742, 722744, 425546, 425547, 425548, 425549

1шт.

6

47615304

SHAFT

Assy, Feeder Jackshaft

1шт.

7

86974037

FLANGE

Plated, 80mm

2шт.

8

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

9

47851534

COLLAR

Lock, 1 3/8"

1шт.

10

47984290

SHIELD

LH Lower

1шт.

11

47984788

SHIELD

LH Upper

1шт.

12

86638316

LATCH

Shield, VAR 425224, 425225, 722742, 722744, 425546, 425547, 425548, 425549

2шт.

12

86638316

LATCH

Shield, VAR 425070

1шт.

13

47983746

SHIELD

Jackshaft, RH Upper, VAR 425224, 425225, 722742, 722744, 425546, 425547, 425548, 425549

1шт.

14

86999166

SHAFT

Conveyor Jackshaft

1шт.

15

87616998

BRACKET

Gearbox

1шт.

16

84354292

BRACKET

Jackshaft Support

1шт.

17

84354290

PROTECTION PLATE

Shield

1шт.

18

87283856

BRACKET

Jackshaft Support

1шт.

19

87106571

SHIELD

Drive Guard, Matched Set

1шт.

20

87282452

PLATE

Support

2шт.

21

87281691

BOLT,Special Bolt, M16 x 2 x 68.9mm OAL 10mm W Flat

2шт.

22

87281673

PIN,44mm OD x 127mm L

2шт.

23

87283141

RETAINING WIRE

Jackshaft Shield

1шт.

24

87284925

COVER ASSY

Jackshaft Cover

1шт.

25

84387874

ANGLE

Support

1шт.

26

87108395

U-BOLT,M8 x 1.25, 145mm OAL x 95mm W

1шт.

27

86995571

COVER

Top

2шт.

28

47765786

COVER

Shield, LH Upper

1шт.

29

86638209

STRIP

Cover

4шт.

30

87484408

SPACER,12.9mm ID x 25.4mm OD x 65.5mm L

3шт.

31

87387107

BUSHING

Hanger Pivot

1шт.

32

47908654

HOOK

Jackshaft

1шт.

33

86605625

CLEVIS PIN,M10 x 110

VAR 425224, 425225, 722742, 722744, 425546, 425547, 425548, 425549

2шт.

33

86605625

CLEVIS PIN,M10 x 110

VAR 425070

1шт.

34

130003

COTTER PIN,3mm OD x 30mm OAL

VAR 425224, 425225, 722742, 722744, 425546, 425547, 425548, 425549

2шт.

34

130003

COTTER PIN,3mm OD x 30mm OAL

VAR 425070

1шт.

35

86508354

PUSH-ON NUT,M8 x 1.25

4шт.
