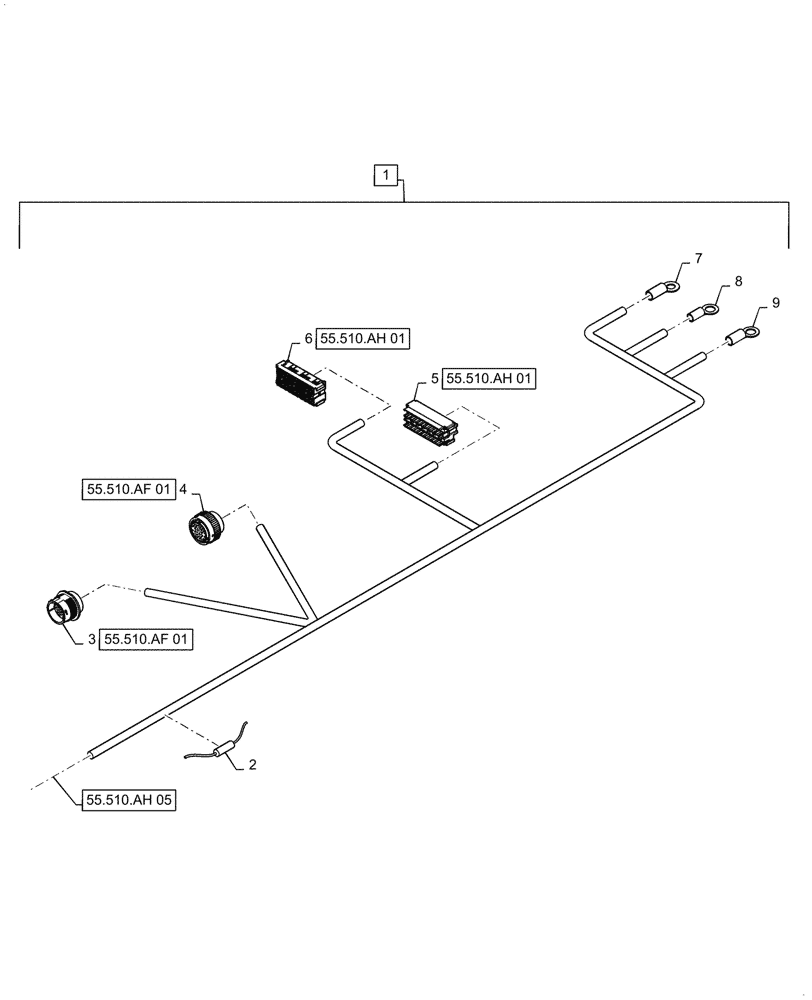

Запчасти Case IH 7240 (55.510.AH[06]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS

1

48055442

WIRE HARNESS

Lower Roof, Incl 2 - 9, Continued

1шт.

2

81878921

DIODE

Light Control, V-794

1шт.

3

87700162

ELEC CONNECTOR

To Cab Main Harness, X-1003

1шт.

3

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

To Cab Main Harness, X-1003

27шт.

3

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

To Cab Main Harness, X-1003

4шт.

4

87700171

ELEC CONNECTOR

To Cab Main Harness, X-1011

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Cab Main Harness, X-1011

6шт.

5

87733581

FUSE BOX

Cab Roof Fuse Module, X-901A

1шт.

5

84127682

ELEC CONNECTOR

Cab Roof Fuse Module, X-901A

5шт.

5

84123442

TERMINAL

Cab Roof Fuse Module, X-901A

13шт.

5

84127679

TERMINAL

Cab Roof Fuse Module, X-901A

3шт.

6

84526304

MODULE

Cab Roof Relay Module, X-901B

1шт.

6

84529032

TERMINAL

Cab Roof Relay Module, X-901B

12шт.

6

84491251

TERMINAL

Cab Roof Relay Module, X-901B

12шт.

6

84546216

TERMINAL

Cab Roof Relay Module, X-901B

1шт.

7

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-571D

1шт.

8

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Switched B+ Post, X-552R

1шт.

9

84398828

TERMINAL,3/8" Ring, SAE 8

Unswitched B+ Post, X-551R

1шт.
