Запчасти Case IH 7240 (55.510.AH[05]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS

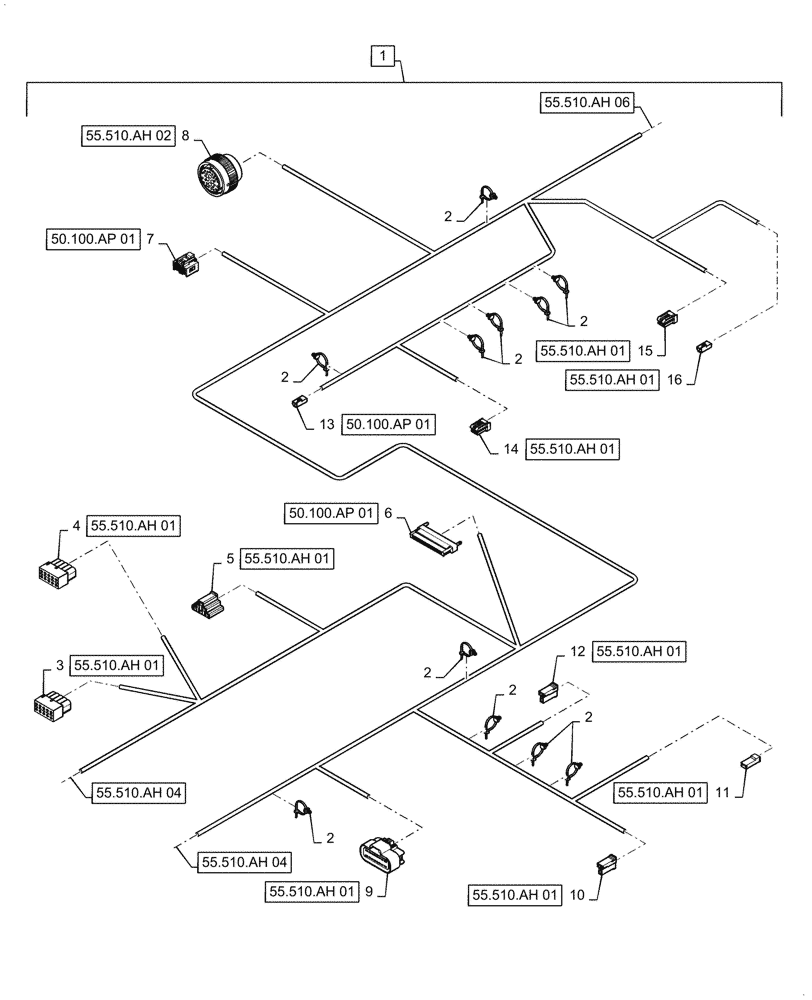

Схема запчастей Case IH 7240 - (55.510.AH[05]) - LOWER ROOF WIRE HARNESS & CONNECTOR, CONTINUED (55) - ELECTRICAL SYSTEMS
55.510.ah 01
2
2
9
14
15
10
3
2
12
2
6
16
2
13
5
2
4
1
7
11
2
2
8
55.510.ah 02
55.510.ah 04
55.510.ah 04
50.100.ap 01
50.100.ap 01
50.100.ap 01
55.510.ah 06
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01
55.510.ah 01

Артикул

Название

Примечание

Количество

1

48055442

WIRE HARNESS

Lower Roof, Incl 2 - 16, Continued

1шт.

2

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

10шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

Distance Spot Lights Switch, X-813

1шт.

3

87694668

ELEC CONNECTOR

Distance Spot Lights Switch, X-813

2шт.

3

87694670

ELEC. TERMINAL PIN

Distance Spot Lights Switch, X-813

2шт.

4

84159859

ELEC CONNECTOR,Female, 10 Cavities

Beacon Lights Switch, X-844

1шт.

4

87694668

ELEC CONNECTOR

Beacon Lights Switch, X-844

7шт.

5

87697775

ELEC CONNECTOR

Rotary Light Switch, X-840

1шт.

5

87697660

TERMINAL

Rotary Light Switch, X-840

2шт.

5

87709400

ELEC. TERMINAL PIN

Rotary Light Switch, X-840

3шт.

6

87693055

ELEC CONNECTOR

ATC Control Module, X-014

1шт.

6

87693315

RUBBER SEAL

ATC Control Module, X-014

1шт.

6

87693316

RETAINER

ATC Control Module, X-014

1шт.

6

87693318

RETAINER

ATC Control Module, X-014

1шт.

6

87693268

TERMINAL

ATC Control Module, X-014

27шт.

7

84491253

WIRE CONNECTOR

HVAC Control Panel, X-015

1шт.

7

84479035

RETAINER

HVAC Control Panel, X-015

1шт.

7

84479173

TERMINAL CONNECTOR,Tin, 0.35 - 0.50mm

HVAC Control Panel, X-015

12шт.

8

87700171

ELEC CONNECTOR

To Upper Roof Harness, X-1004

1шт.

8

84068583

PLUG,12 - 16 Ga, White

To Upper Roof Harness, X-1004

3шт.

8

84807680

PLUG

To Upper Roof Harness, X-1004

1шт.

8

47820421

BOOT

To Upper Roof Harness, X-1004

1шт.

8

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

To Upper Roof Harness, X-1004

4шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

To Upper Roof Harness, X-1004

4шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Upper Roof Harness, X-1004

12шт.

8

87704042

TERMINAL

To Upper Roof Harness, X-1004

5шт.

9

87696573

ELEC CONNECTOR

To A-Post Display Harness, X-1008

1шт.

9

87688853

WIRE CONNECTOR

To A-Post Display Harness, X-1008

1шт.

9

84526560

TERMINAL

To A-Post Display Harness, X-1008

2шт.

9

87271728

SEAL,1.70 - 2.10mm, Yellow

To A-Post Display Harness, X-1008

2шт.

9

84193153

TERMINAL

To A-Post Display Harness, X-1008

3шт.

9

84143101

SEAL

To A-Post Display Harness, X-1008

3шт.

10

87691950

TERMINAL CONNECTOR

Dome Light, X-316B

1шт.

10

87702666

ELEC. TERMINAL PIN

Dome Light, X-316B

2шт.

11

87581782

ELEC CONNECTOR,Female

Dome Light, X-316A

1шт.

11

87702666

ELEC. TERMINAL PIN

Dome Light, X-316A

1шт.

12

87691950

TERMINAL CONNECTOR

RH Console Projection Light, X-314

1шт.

12

87702666

ELEC. TERMINAL PIN

RH Console Projection Light, X-314

2шт.

13

87697541

ELEC CONNECTOR

Outside (Inlet) Air Temp Sensor, X-106

1шт.

13

87705061

RETAINER

Outside (Inlet) Air Temp Sensor, X-106

1шт.

13

87693329

TERMINAL

Outside (Inlet) Air Temp Sensor, X-106

2шт.

14

87690957

TERMINAL

LH Rear Speaker, X-753

1шт.

14

87680668

ELEC. TERMINAL PIN,Tin, 0.50 - 1.40mm

LH Rear Speaker, X-753

2шт.

15

87690957

TERMINAL

RH Rear Speaker, X-752

1шт.

15

87680668

ELEC. TERMINAL PIN,Tin, 0.50 - 1.40mm

RH Rear Speaker, X-752

2шт.

16

87697541

ELEC CONNECTOR

Cab (Inside Air) Temp Sensor, X-104

1шт.

16

87693329

TERMINAL

Cab (Inside Air) Temp Sensor, X-104

2шт.

Выбрано товаров: 47
