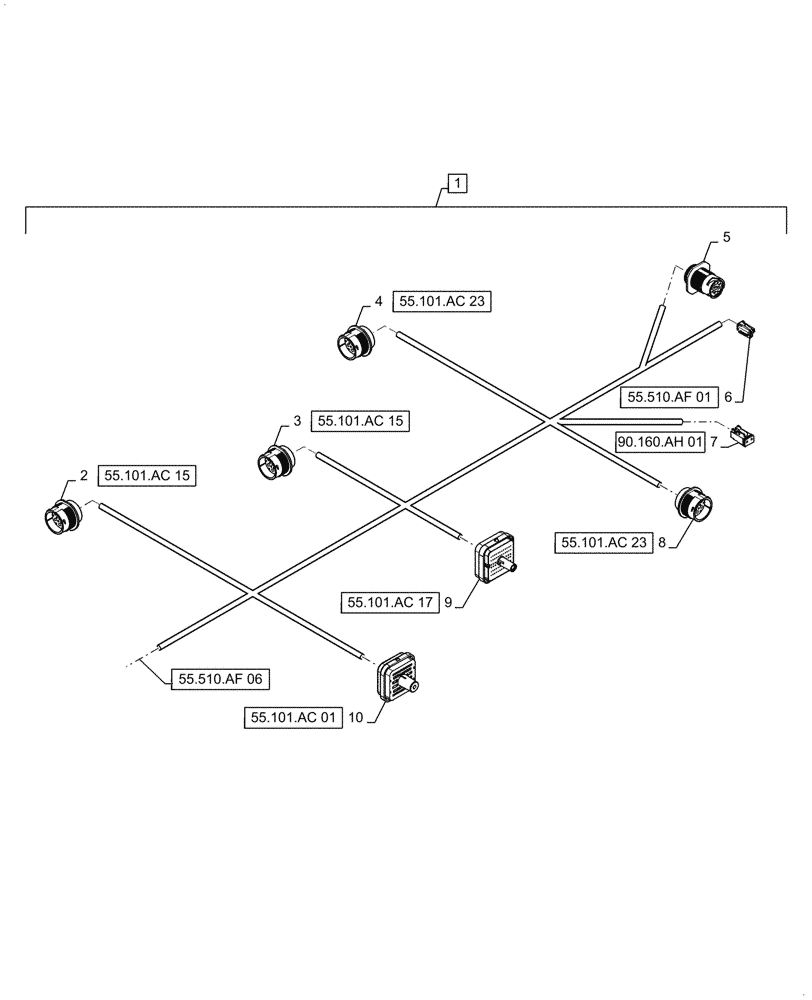

Запчасти Case IH 7240 (55.510.AF[07]) - VAR - 425357, 425358 - CAB MAIN WIRE HARNESS, CONTINUED (55) - ELECTRICAL SYSTEMS

1

48000768

WIRE HARNESS

Cab Main, Incl 2 - 10

1шт.

2

87696098

ELEC CONNECTOR

LH Harness A, X-003

1шт.

2

84068583

PLUG,12 - 16 Ga, White

LH Harness A, X-003

5шт.

2

87695623

ELEC. TERMINAL PIN

LH Harness A, X-003

8шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

LH Harness A, X-003

2шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

LH Harness A, X-003

4шт.

3

87700162

ELEC CONNECTOR

LH Harness B, X-004

1шт.

3

84068583

PLUG,12 - 16 Ga, White

LH Harness B, X-004

1шт.

3

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

LH Harness B, X-004

28шт.

3

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

LH Harness B, X-004

2шт.

4

87700162

ELEC CONNECTOR

Front Frame Harness, X-001

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Front Frame Harness, X-001

3шт.

4

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Front Frame Harness, X-001

26шт.

4

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Front Frame Harness, X-001

2шт.

5

47617975

ELEC CONNECTOR

Diagnostic Connector, X-065

1шт.

5

47591988

WIRE CONNECTOR

Diagnostic Connector, X-065

1шт.

5

47617976

CAP

Diagnostic Connector, X-065

1шт.

5

47619984

JAM NUT

Diagnostic Connector, X-065

1шт.

5

47554028

TERMINAL

Diagnostic Connector, X-065

8шт.

6

84398827

WIRE CONNECTOR

LH Auxiliary Outlet, X-076

1шт.

6

84178477

RETAINER

LH Auxiliary Outlet, X-076

1шт.

6

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

LH Auxiliary Outlet, X-076

2шт.

7

87711966

PLUG

Cooler Box Outlet, X-528

1шт.

7

87712180

ELEC CONNECTOR

Cooler Box Outlet, X-528

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cooler Box Outlet, X-528

2шт.

8

87700159

ELEC CONNECTOR

Front Frame Harness, X-002

1шт.

8

84068583

PLUG,12 - 16 Ga, White

Front Frame Harness, X-002

4шт.

8

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Front Frame Harness, X-002

17шт.

8

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Front Frame Harness, X-002

2шт.

9

84550086

Extension Harness, X-005

ELEC CONNECTOR

1шт.

9

84807680

PLUG

Extension Harness, X-005

3шт.

9

84550087

Extension Harness, X-005

ELEC. TERMINAL PIN

1шт.

9

84550088

Extension Harness, X-005

ELEC CONNECTOR

1шт.

9

87696141

TERMINAL

Extension Harness, X-005

45шт.

9

87695623

ELEC. TERMINAL PIN

Extension Harness, X-005

11шт.

9

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Extension Harness, X-005

1шт.

10

84177903

ELEC CONNECTOR

Extension Harness, X-006

1шт.

10

84807680

PLUG

Extension Harness, X-006

6шт.

10

84177911

ELEC CONNECTOR

Extension Harness, X-006

1шт.

10

87016253

ELEC CONNECTOR

Extension Harness, X-006

1шт.

10

87695623

ELEC. TERMINAL PIN

Extension Harness, X-006

6шт.

10

87696141

TERMINAL

Extension Harness, X-006

22шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

Extension Harness, X-006

8шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Extension Harness, X-006

6шт.
