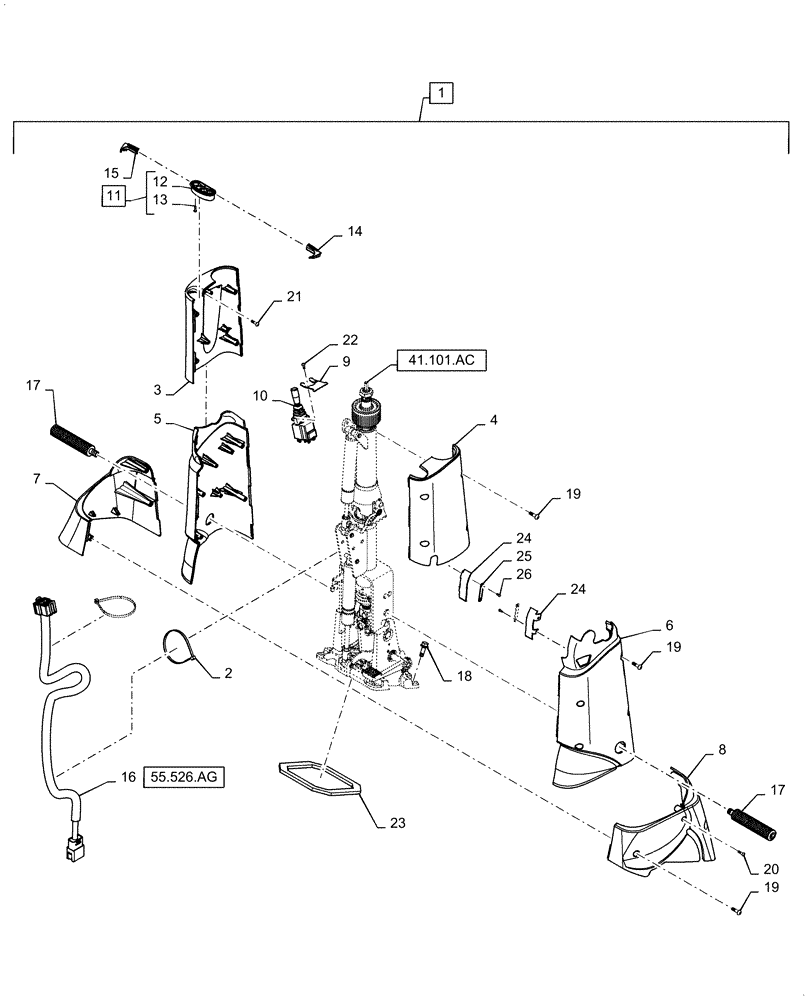

Запчасти Case IH 7240 (41.101.AB) - STEERING COLUMN (41) - STEERING

1

84331727

STEERING COLUMN

Incl 2 - 26

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

3

47422975

COVER

LH, Upper

1шт.

4

47422974

COVER

RH, Upper

1шт.

5

47422986

COVER

LH, Middle

1шт.

6

47422982

COVER

RH, Middle

1шт.

7

84323821

COVER

LH, Lower

1шт.

8

84323822

COVER

RH, Lower

1шт.

9

84539487

BRACKET

Turn Signal Switch Mounting

1шт.

10

84360909

TOGGLE SWITCH

Turn Signal

1шт.

11

84344312

INSTRUMENT PANEL

Lamp Indicator, Incl 12 - 13

1шт.

12

84469094

INSTRUMENT PANEL

Lamp Indicator

1шт.

13

280154

SELF-TAP SCREW,Cross Rd Hd, #6 x 1/2"

2шт.

14

47392759

MOUNT

RH, Indicator Display

1шт.

15

47392763

MOUNT

LH, Indicator Display

1шт.

16

84524006

HARNESS

Steering Column to Cab Harness

1шт.

17

47424855

FOOTREST

2шт.

18

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

19

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

15шт.

20

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

1шт.

21

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

1шт.

22

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

23

84582200

GASKET,6.35mm Thk

Cab Floor

1шт.

24

47392741

COVER

Rubber, Middle

2шт.

25

84545277

PLATE

Rubber, Cover Retainer

2шт.

26

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.
