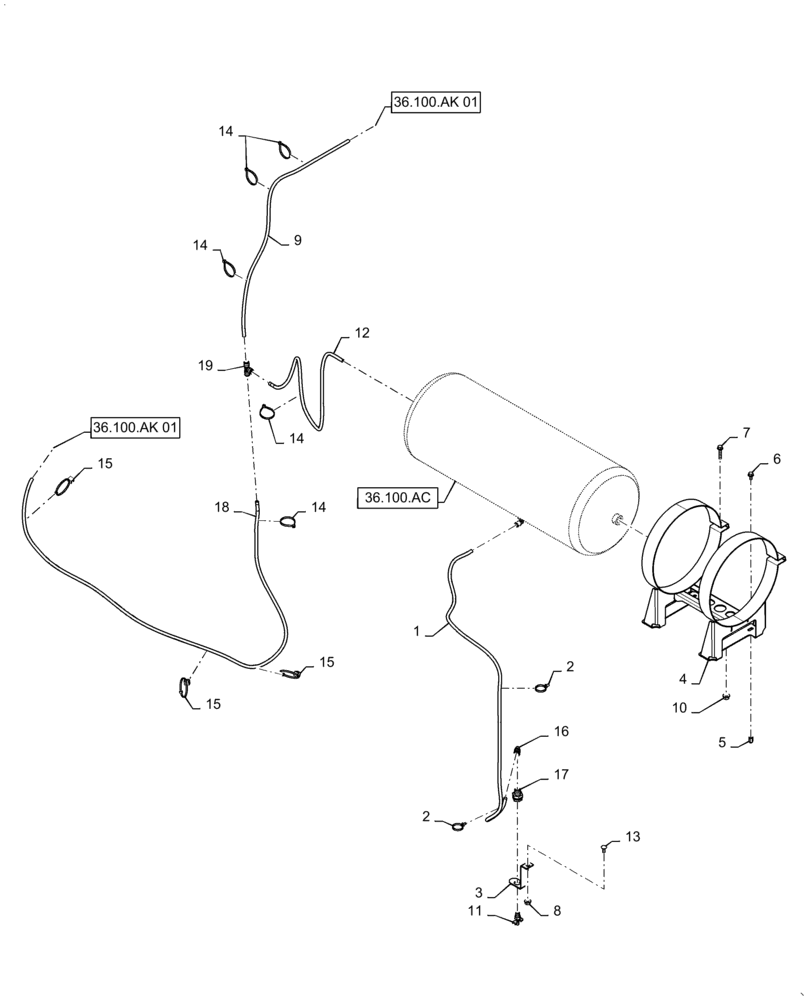

Запчасти Case IH 7240 (36.100.AK[02]) - VAR - 722525 - AIR RESERVOIR (36) - PNEUMATIC SYSTEM

1

47563549

HOSE

7.112mm ID x 9.525mm OD x 1378mm L

1шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assy

2шт.

3

47518469

BRACKET

Support, 175mm L x 32mm W

1шт.

4

47612384

SUPPORT

Air Reservoir, Bracket

1шт.

5

84983188

RIVET,Flng, SW 11mm OD x 17.2mm L

4шт.

6

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

7

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

9

47518403

HOSE

7.112mm ID x 9.525mm OD x 895mm L

1шт.

10

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

11

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

12

47518402

HOSE

7.112mm ID x 9.525mm OD x 1106mm L

1шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

1шт.

14

86566989

CABLE TIE,208mm L

5шт.

15

87694057

CABLE TIE,200mm L

3шт.

16

84162975

HYD CONNECTOR

Elbow, Push Connect, 3/8" OD x 1/4"

1шт.

17

84171982

HYD CONNECTOR

Bulkhead, 1/4" ID x 3/4" x 37mm L

1шт.

18

47518401

HOSE

7.112mm ID x 9.525mm OD x 2041mm OAL

1шт.

19

84175931

HYD CONNECTOR

Tee, Push Connect, 3/8" OD x 51mm L

1шт.
