Запчасти Case IH 7240 (25.100.AA[03]) - VAR - 425215, 425399 - FRONT AXLE (25) - FRONT AXLE SYSTEM

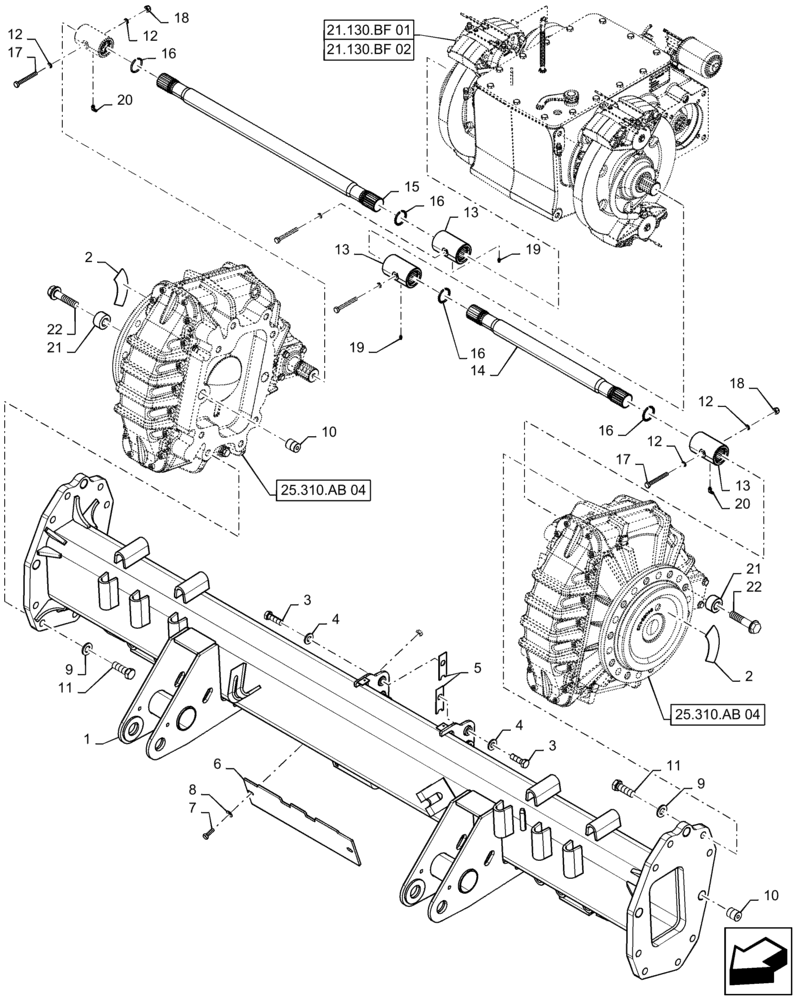

Схема запчастей Case IH 7240 - (25.100.AA[03]) - VAR - 425215, 425399 - FRONT AXLE (25) - FRONT AXLE SYSTEM
13
12
18
14
22
16
13
21
1
21.130.bf 01
12
16
19
18
5
10
10
21.130.bf 02
25.310.ab 04
4
15
17
2
20
20
6
2
17
4
12
19
3
3
9
11
8
7
11
9
25.310.ab 04
16
12
13
21
16
22

Артикул

Название

Примечание

Количество

1

87587580

FRONT AXLE

VAR - 425215

1шт.

2

87283497

DECAL

Drive Sprocket Bolt Torque

2шт.

3

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

4

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

6шт.

5

84073986

SHIM,87mm x 30mm x 2.14mm Thk

2шт.

6

84435587

PLATE

Transmission Shield, 460mm L x 120mm W

1шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

16шт.

10

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

11

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

4шт.

12

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

8шт.

13

87586665

SPLINED BUSHING,22T

22T, 104mm L

4шт.

Only 2 Are Required For, - VAR - 722028, 722774

1шт.

13

87586667

SPLINED COUPLING,23T

23T, 110mm L, - VAR - 722028, 722774

2шт.

14

84440162

DRIVE SHAFT

LH, 22T, 663mm L, - VAR - 425215

1шт.

Check For Axle Extensions Before Ordering

1шт.

15

84440165

DRIVE SHAFT

RH, 22T, 923mm L, - VAR - 425215

1шт.

Check For Axle Extensions Before Ordering

1шт.

16

84446910

SNAP RING,M40

4шт.

17

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

19

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

20

323713

LUBE NIPPLE,M6 x 1mm

2шт.

21

84394484

SPACER,22.8mm ID x 50.3mm OD x 30mm

VAR - 722776

20шт.

22

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

VAR - 722776

20шт.

Выбрано товаров: 26
