Запчасти Case IH 7240 (14.100.AR[02]) - VAR - 425465, 425464, 425361, 425362 - PTO GEAR HOUSING (14) - MAIN GEARBOX & DRIVE

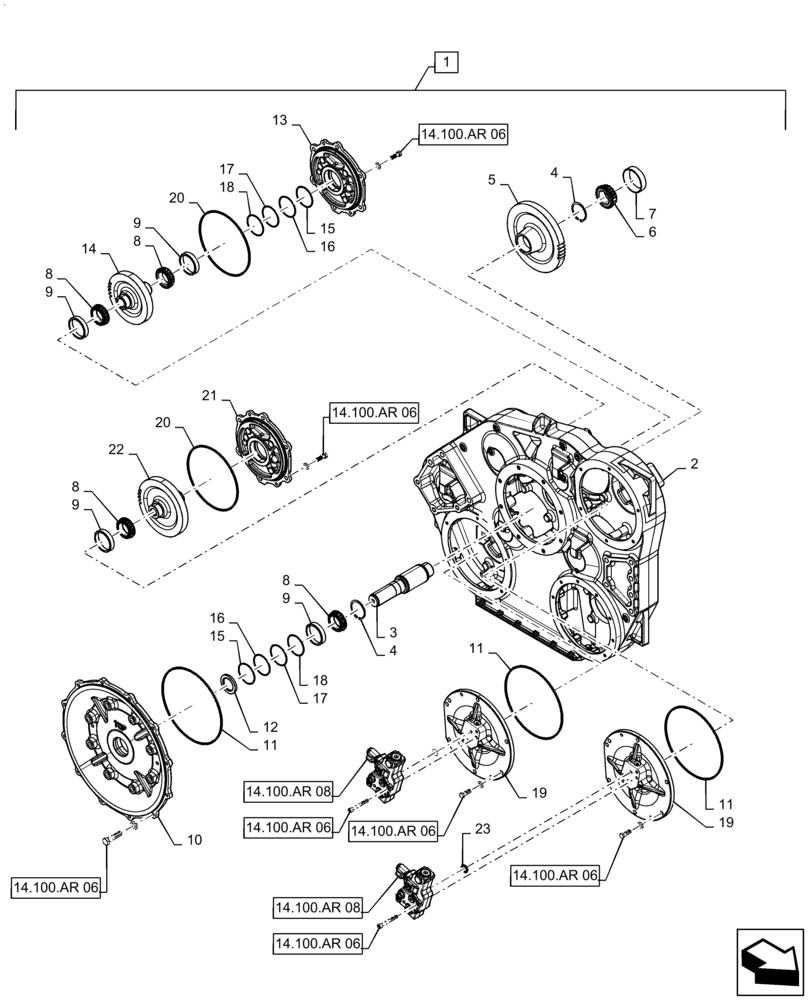

Схема запчастей Case IH 7240 - (14.100.AR[02]) - VAR - 425465, 425464, 425361, 425362 - PTO GEAR HOUSING (14) - MAIN GEARBOX & DRIVE
14.100.ar 08
14.100.ar 08
11
16
14.100.ar 06
9
16
15
14.100.ar 06
9
2
14.100.ar 06
19
8
1
8
17
14.100.ar 06
6
4
7
20
9
13
5
3
11
10
8
14.100.ar 06
18
15
11
14.100.ar 06
20
12
8
19
9
14
4
23
22
17
14.100.ar 06
18
21

Артикул

Название

Примечание

Количество

1

47590627

PTO

Assy, Incl 2 - 23

1шт.

7240

1шт.

1

47590628

PTO

Assy, Incl 2 - 23

1шт.

8240

1шт.

1

47590629

PTO

Assy, Incl 2 - 23

1шт.

9240

1шт.

2

84595095

HOUSING

PTO

1шт.

3

397688A1

SHAFT

Input, 280mm L

1шт.

4

100-11262

SNAP RING,#262, Ext

2шт.

5

86975202

GEAR

Input, 58T

1шт.

6

174127

TAPERED BEARING,2" ID x 1.192"

1шт.

7

22365V

BEARING CUP,3.6718" OD x 0.93"

1шт.

8

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

7шт.

9

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

7шт.

10

84593676

COVER

Engine/Input Shaft

1шт.

11

14469580

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

3шт.

12

87618406

OIL SEAL,49.23mm ID x 73.14mm OD x 7.95mm Thk

1шт.

13

47375763

FLANGE

Feeder/Rotor Pump Drive

1шт.

14

86975207

GEAR

Gear Pump Drive, 42T

1шт.

15

378154A1

SHIM,0.127mm Thk

75mm ID x 82mm OD x 0.127mm Thk

1шт.

16

378155A1

SHIM,0.178mm Thk

75mm ID x 82mm OD x 0.178mm Thk

1шт.

17

378156A1

SHIM,0.203mm Thk

75mm ID x 82mm OD x 0.203mm Thk

1шт.

18

378157A1

SHIM,0.508mm Thk

75mm ID x 82mm OD x 0.508mm Thk

1шт.

19

87105122

COVER

PTO Drives

2шт.

20

9823349

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

2шт.

21

47375768

FLANGE

PFC Pump

2шт.

22

86975208

GEAR

PFC Pump Drive, 48T

2шт.

23

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

8шт.

Выбрано товаров: 28
