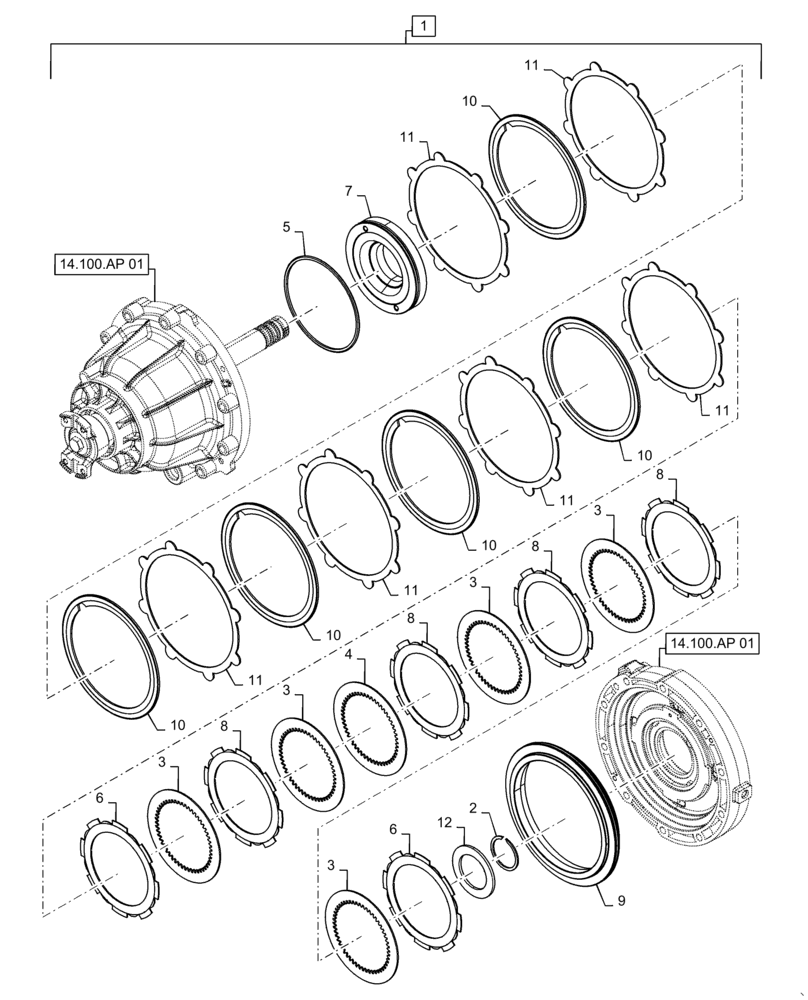

Запчасти Case IH 7240 (14.100.AP[02]) - VAR - 425465, 425361, 425362, 425464 - VARIATOR, ROTOR (14) - MAIN GEARBOX & DRIVE

1

86998846

VARIATOR

Rotor Variator, Incl 2 - 12

1шт.

1

86998846R

REMAN-GEARBOX

Rotor Variator

1шт.

1

86998846C

CORE-GEARBOX

Return Number

1шт.

2

428163A1

RING, SNAP

Retaining, 70mm ID x 82mm OD

1шт.

3

S2080S00F

CLUTCH DISC,2.4mm Thk

1шт.

4

S2090S00F

CLUTCH DISC,2.1mm Thk

1шт.

5

87431391

RING

Seal, 173mm ID x 181mm OD

1шт.

6

375528A1

CLUTCH DISC

8 Tab, 141.7mm ID x 1.8mm Thk, 7" Clutch Face

2шт.

7

352833A1

PISTON

74mm ID x 175mm OD

1шт.

8

375529A1

CLUTCH DISC

8 Tab, 141.7mm ID x 2.2mm Thk, 7" Clutch Face

4шт.

9

87281427

PISTON

Reverse, Reducer, 224mm ID to 215mm ID x 273mm OD x 30mm Thk

1шт.

10

87281430

CLUTCH DRIVING PLATE

Reverse, 197mm ID x 237mm OD

5шт.

11

87281431

CLUTCH PLATE,216mm ID x 241mm OD x 2.4mm Thk

Reverse

6шт.

12

352827A1

PLATE

Spring, Retainer, 73mm ID x 108mm OD x 5mm Thk

1шт.
