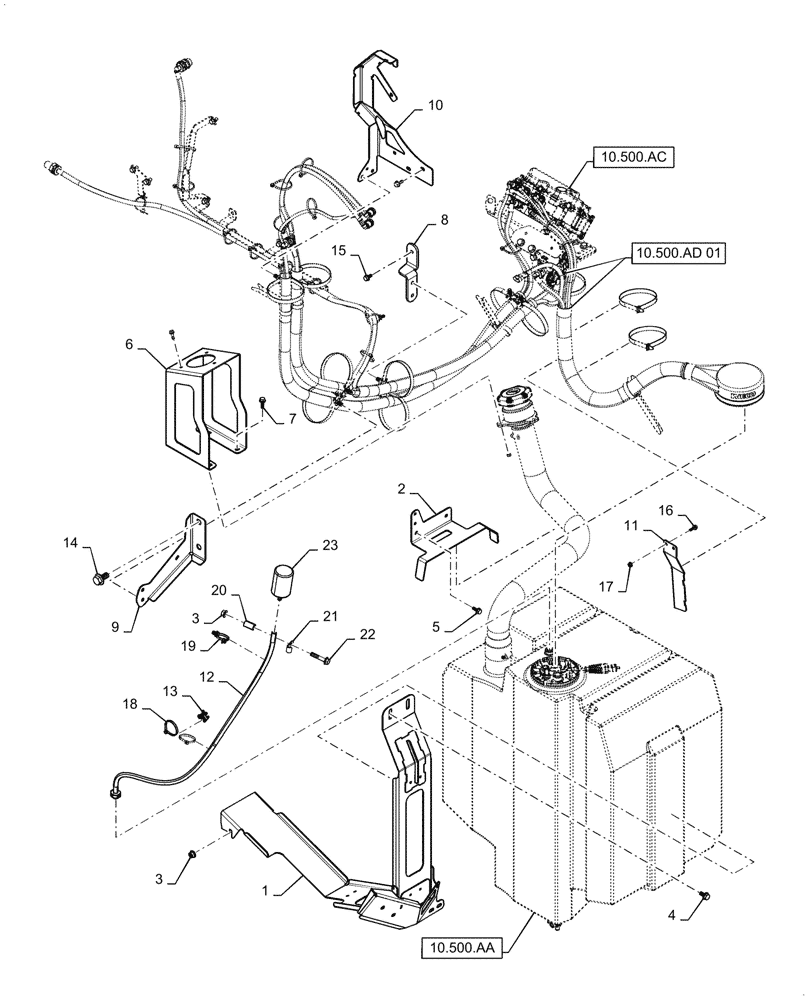

Запчасти Case IH 7240 (10.500.AD[03]) - DEF LINES, DEF TANK (10) - ENGINE

1

47491572

BRACKET

DEF/Adblue™ Tank

1шт.

2

47679725

BRACKET

DEF/Adblue™ Tank

1шт.

3

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

4

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

6

47707367

SUPPORT

Bracket

1шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

8

47584272

BRACKET

Hose

1шт.

9

47707485

BRACKET

Hose Mount

1шт.

10

47707671

BRACKET

Hose

1шт.

11

47499053

BRACKET

Hose Bundle

1шт.

12

47967442

HOSE

Tank Vent

1шт.

13

84318895

SPACER,17.97mm H

Swivel

1шт.

14

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

15

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

17

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

18

86566989

CABLE TIE,208mm L

2шт.

19

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

20

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

22

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

23

47437399

FUEL FILTER

Tank Vent

1шт.
