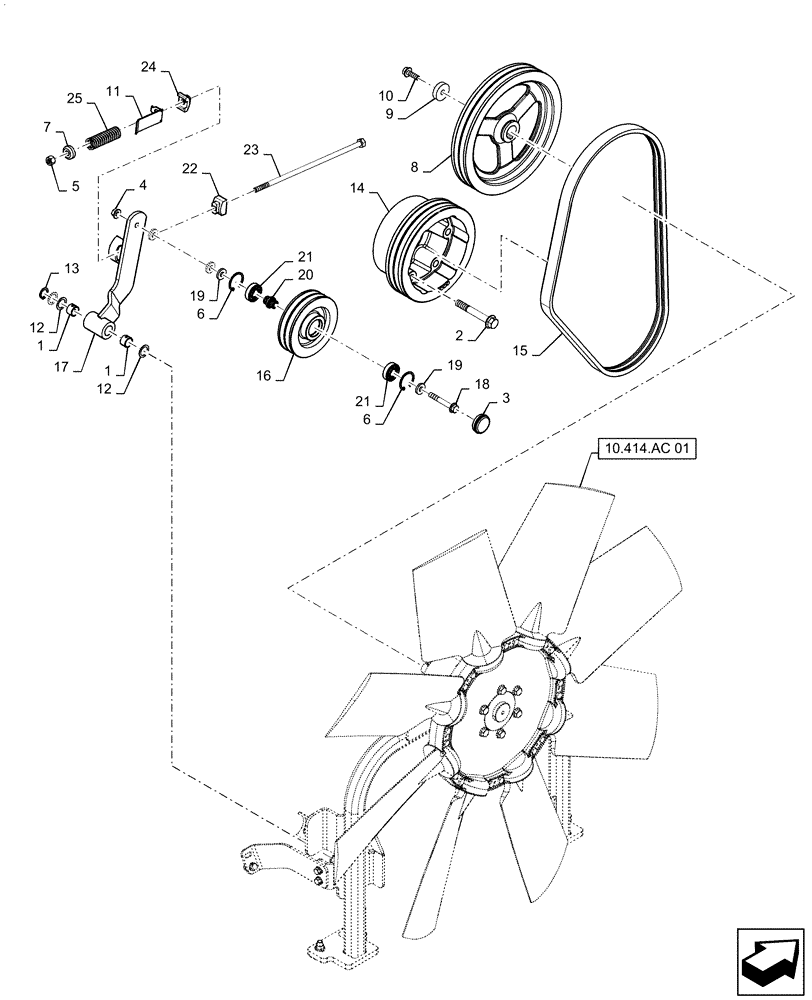

Запчасти Case IH 7240 (10.414.AC[02]) - FAN, PULLEY & BELT, ENGINE (10) - ENGINE

1

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

2шт.

2

16681435

FLANGE BOLT,Hex, M14 x 2.0 x 113.7mm, Cl 10.9

6шт.

3

47623577

CAP

Dust, 41.18mm ID x 43.18mm OD x 14.34mm Thk

1шт.

4

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

5

412141

NUT,M10 x 1.5, Cl 8

1шт.

6

300644

SNAP RING,M40, Internal

2шт.

7

356728

CUP

25mm ID x 29mm OD x 10mm Thk

1шт.

8

47422493

PULLEY

Fan Drive

1шт.

9

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

Tensioner

1шт.

11

47462054

INDICATOR

Tension

1шт.

12

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

3шт.

13

370024

CIRCLIP,M20, Ext

1шт.

14

47406665

PULLEY

Crankshaft, 109mm ID x 226mm OD x 110.8mm W

1шт.

15

47463606

BELT

Fan Drive, 1625.6mm Nominal Length

1шт.

16

47406735

PULLEY

Tensioner, 40mm ID x 144mm OD x 40mm W

1шт.

17

47623751

ARM

Tension Adjuster

1шт.

18

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

1шт.

19

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

20

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

21

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

22

754131

GUIDE

Tensioner Rod

1шт.

23

47417330

ROD

Tensioner Adjuster, 324mm L

1шт.

24

442398

GUIDE

Tensioner Rod

1шт.

25

440651

SPRING

Tensioner

1шт.
