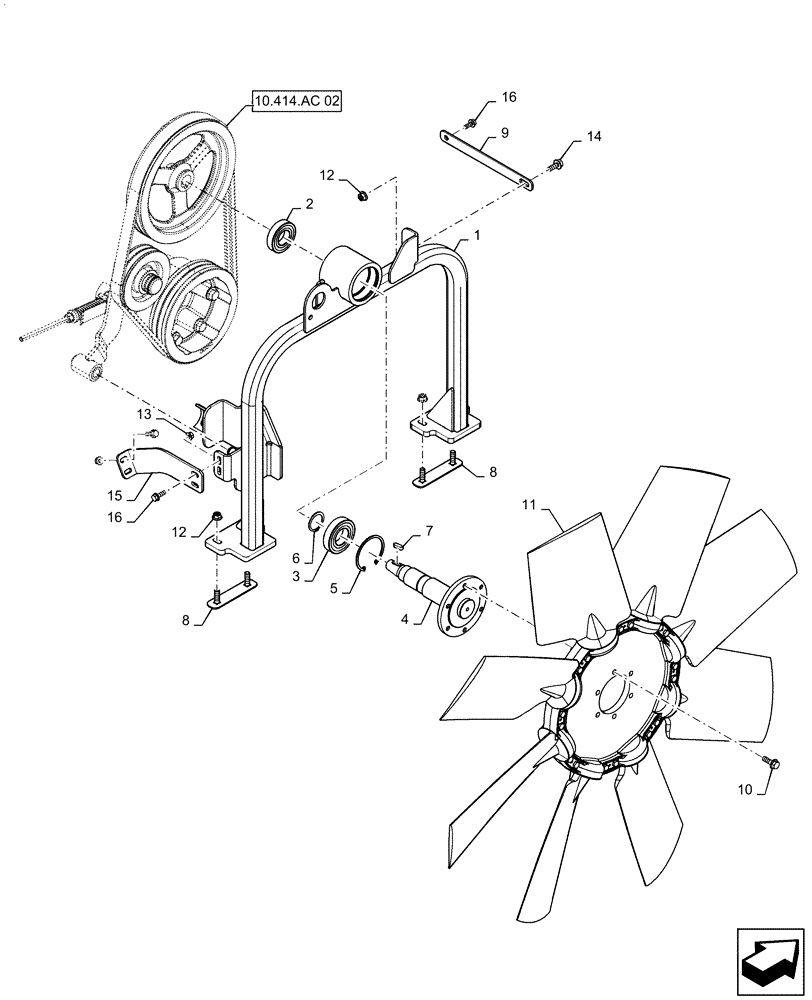

Запчасти Case IH 7240 (10.414.AC[01]) - FAN, ENGINE (10) - ENGINE

1

47707880

SUPPORT

Fan Mount

1шт.

2

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

3

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

4

47428015

SHAFT

Fan, 235.9mm L

1шт.

5

300633

SNAP RING,M80, Internal

1шт.

6

370006

SNAP RING,M40, Ext

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

47702941

SUPPORT

Suction Fan

2шт.

9

47702726

PLATE

279.5mm L x 25mm W

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

7шт.

11

47409167

FAN

93.5mm ID x 1067mm OD, 8 Blade

1шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

14

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

15

47705284

BRACKET

Support

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.
