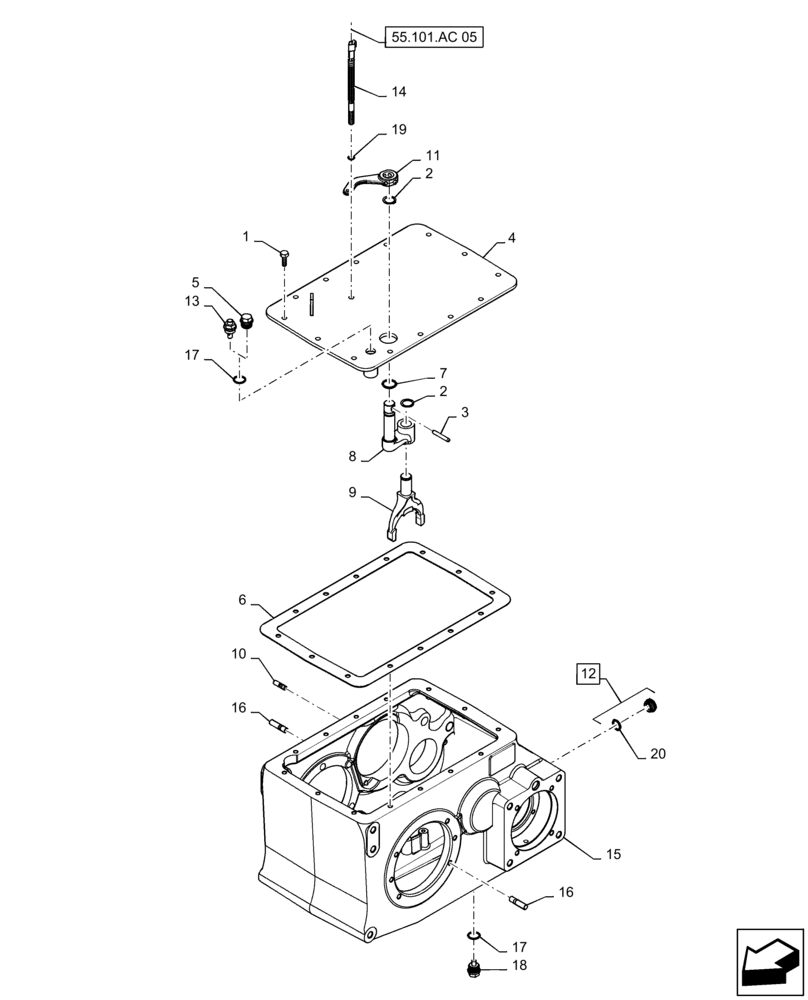

Запчасти Case IH 7230 (21.130.BF[02]) - HOUSING, TRANSMISSION, DIFFERENTIAL LOCK (21) - TRANSMISSION

1

412621

BOLT,Hex, M10 x 30mm, Cl 8.8

14шт.

2

370002

CIRCLIP,M25, External

2шт.

3

9506888

PIN,7.95mm OD x 53mm L

1шт.

4

84072053

COVER

W/ Diff Lock

1шт.

5

150006

DRAIN PLUG,M24 x 1.5

1шт.

6

84071961

GASKET,2mm Thk

Cover

1шт.

7

9818942

O-RING,0.103" Thk x 0.75" ID, -116, 70 Duro

1шт.

8

9818945

INSERT

Fork Lever

1шт.

9

9818947

YOKE

Diff Lock Fork

1шт.

10

110019

STUD,M10 x 37, Cl 8.8

5шт.

11

84334005

LEVER

Diff Lock

1шт.

12

84071596

PLASTIC PLUG,M31 x 19mm

Oil Level Sight Glass, Incl 20

1шт.

13

398136

BREATHER,M24 x 1.5

Vent Plug

1шт.

14

87105682

SENSOR

RPM, Hall Effect

1шт.

15

84439588

HOUSING

Transmission

1шт.

16

350341

STUD,M12 x 50

15шт.

17

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

2шт.

18

336897

PLUG,M24 x 1.5

1шт.

19

355607

SEALING WASHER,15.5mm OD x 12mm ID x 1.5mm Thk

1шт.

20

NSS

NOT SOLD SEPARAT

Sight Glass Seal, Incl in 12

1шт.

21

84470110

GEAR REDUCTION UNIT

Transmission, Complete

1шт.

21

84470110R

REMAN-TRANSMISSION

1шт.

21

84470110C

CORE-TRANSMISSION

Return Number

1шт.
