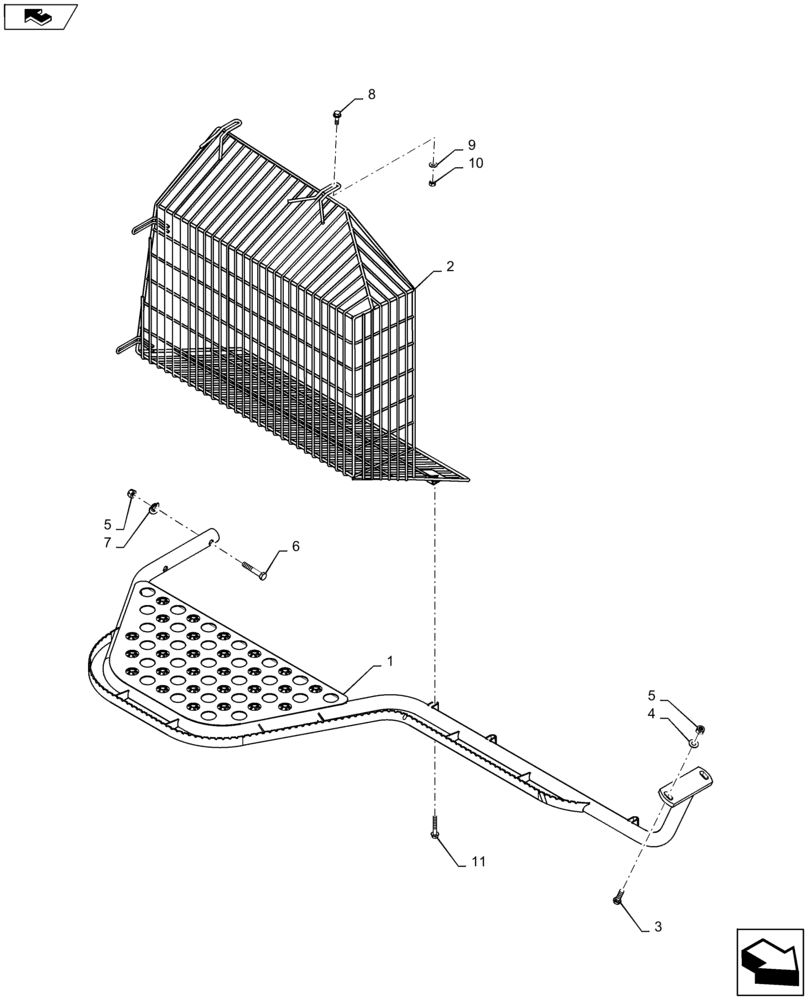

Запчасти Case IH 7230 (90.116.AA[03]) - SHIELD, RH, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47540580

TUBE

Step, RH

1шт.

2

47429607

SHIELD

Cleaning Fan Motor Basket

1шт.

3

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

87656139

BOLT,M10 x 70.4mm, Cl 10.9

2шт.

7

379401

WASHER,11mm ID x 30mm OD

Retainer

2шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

2шт.

11

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.
