Запчасти Case IH 7230 (10.500.AA) - DEF/ADBLUE™ TANK (10) - ENGINE

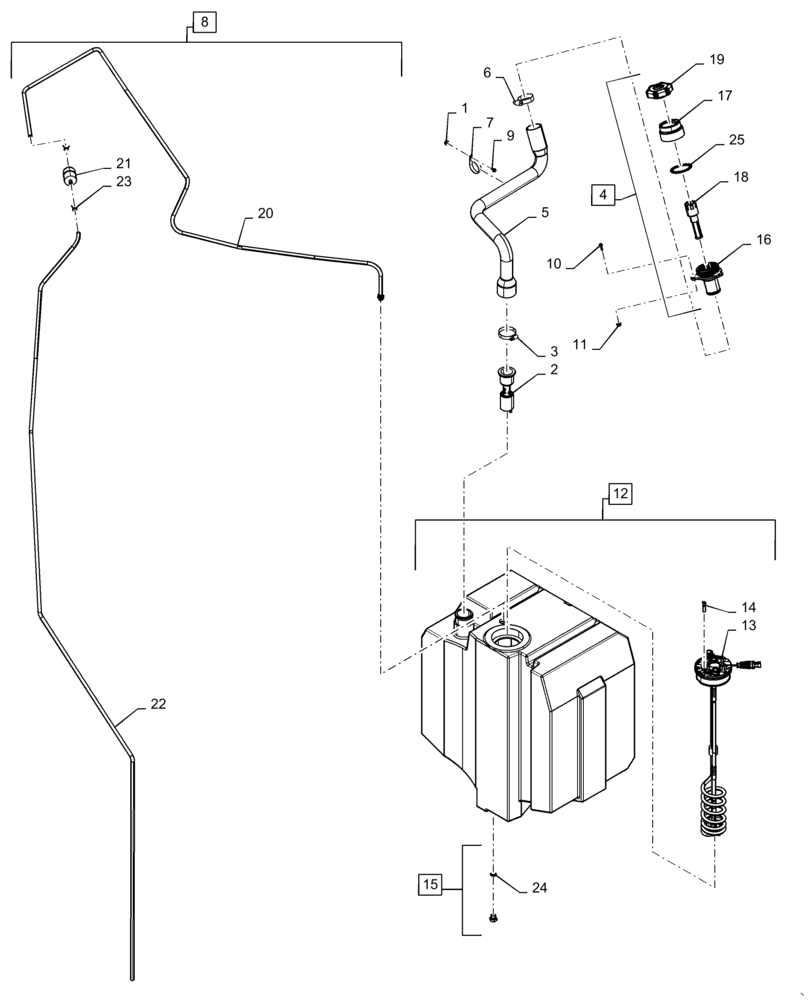

Схема запчастей Case IH 7230 - (10.500.AA) - DEF/ADBLUE™ TANK (10) - ENGINE
18
21
14
17
2
8
1
19
5
20
23
7
25
22
11
16
6
10
12
13
4
24
3
15
9

Артикул

Название

Примечание

Количество

1

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

2

84248007

NOZZLE

Filler Neck

1шт.

3

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

4

47421733

NECK FILLER

Fuel, Assy, Remote, Incl 16 - 19

1шт.

5

84256096

HOSE ASSY.

Def Tank, 403.1mm OAL

1шт.

6

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

7

84305554

HOSE CLAMP,47.6mm, Coat, P Type

M6 x 47.6mm ID

1шт.

8

47515976

HOSE

Vent, Incl 20 - 23

1шт.

9

86511893

BOLT,Hex Serr, M6 x 12mm

1шт.

10

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

11

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

3шт.

12

84151000

TANK

Def, Incl 13 - 15, 24

1шт.

13

47512674

SENSOR

Def Level

1шт.

14

84208502

PLUG,10mm OD x 42.4mm L

Red, 10mm OD x 42.4mm OAL

1шт.

15

84234574

PLUG,Hex, M18 x 1.5

M18 x 1.5, Incl 24

1шт.

16

47381867

ADAPTER

Fuel Neck Filler, Reducer, 69mm ID to 42.8mm ID x 107mm OAL

1шт.

17

84236736

NECK FILLER

Fuel, Reducer, 90mm OD to 80mm OD

1шт.

18

84363730

FILTER STRAINER

DEF/ADBLUE

1шт.

19

84206552

FILLER CAP,Male

DEF/ADBLUE

1шт.

20

47515967

HOSE

Vent Line, 11.25mm ID x 12.5mm OD x 2800mm OAL

1шт.

21

D139225

FILTER, FUEL

In - Line, 48.5mm OD x 98mm OAL

1шт.

22

47515974

HOSE

Vent Line, 11.25mm ID x 12.5mm OD x 3714mm OAL

1шт.

23

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 4

1шт.

Выбрано товаров: 25
