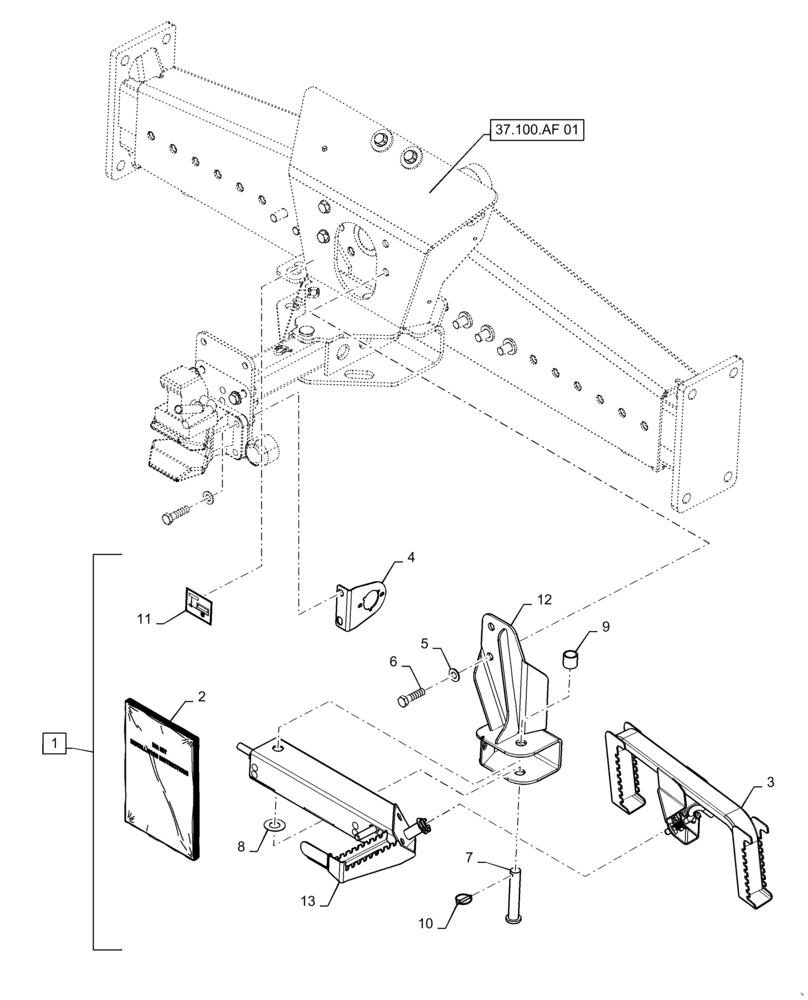

Запчасти Case IH 7230 (88.100.90[01]) - DIA KIT, ADDITIONAL PRODUCTS, STEP, REAR AXLE (88) - ACCESSORIES

1

47615929

SERVICE KIT

Incl 2-13

1шт.

2

47619190

INSTRUCTION

Kit

1шт.

3

47484999

STEP

Rotating

1шт.

4

84571767

MOUNTING PLATE

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

6

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

2шт.

7

86984254

CLEVIS PIN,24mm OD x 135mm L

1шт.

8

603797

THRUST WASHER,25.4mm ID x 50.8mm OD x 1.7mm W

50.8mm OD x 25.4mm ID x 1.7mm

1шт.

9

87034740

SPACER,26.64mm ID x 33.40mm OD x 30mm W

1шт.

10

82013836

ROLL PIN,6mm OD

Linch

2шт.

11

84446050

DECAL

Weight Limit

1шт.

12

47492704

STEP

Pivot

1шт.

13

47624223

SUPPORT

Step, Tube Assembly

1шт.
