Запчасти Case IH 7230 (88.100.80[14]) - DIA KIT, UNLOADING TUBE, PIVOT, DISCHARGE SPOUT (88) - ACCESSORIES

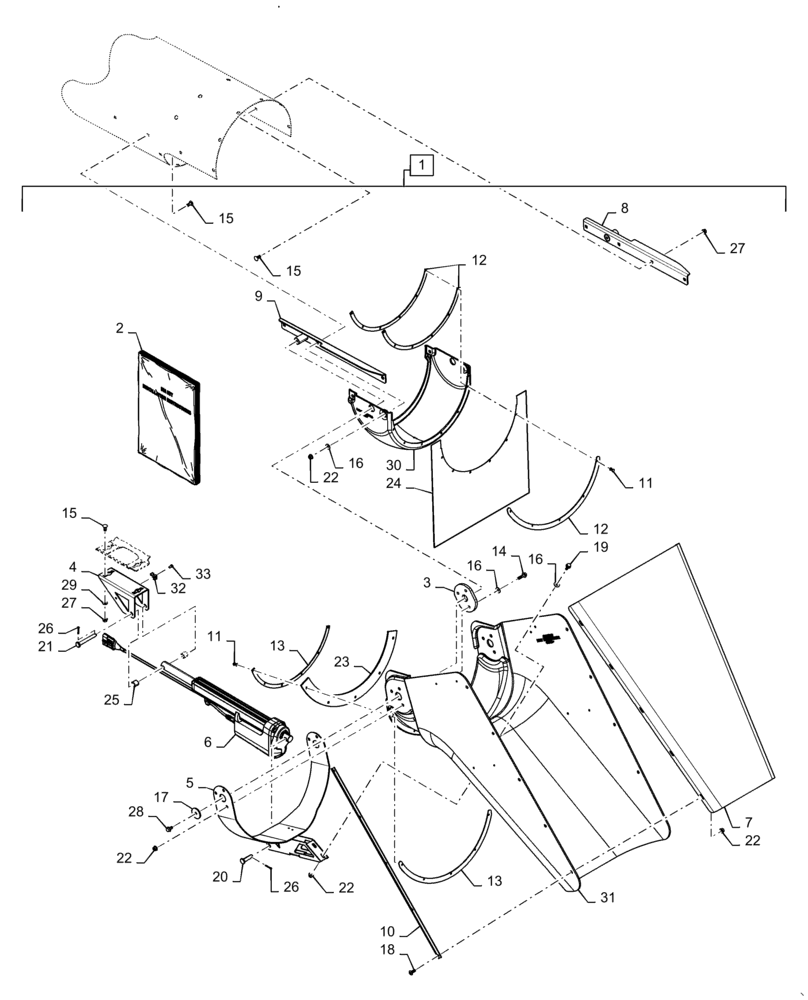

Схема запчастей Case IH 7230 - (88.100.80[14]) - DIA KIT, UNLOADING TUBE, PIVOT, DISCHARGE SPOUT (88) - ACCESSORIES
21
26
13
16
24
31
22
14
12
19
16
22
17
5
15
4
29
11
33
22
15
10
20
12
1
3
9
32
7
25
27
13
15
6
23
8
22
18
11
16
30
26
27
2
28

Артикул

Название

Примечание

Количество

1

47428879

SERVICE KIT

Pivot Spout Unload Assy, Incl 2 - 33

1шт.

2

84406829

OPERATOR MANUAL

Unload Spout

1шт.

3

84208552

SPACER,25.8mm ID x 110mm OD x 9mm Thk

110mm OD x 25mm ID x 9mm W

2шт.

4

47408650

BRACKET

Mounting, Acutator

1шт.

5

84522311

STRAP

Discharge Spout, Bracket

1шт.

6

47464242

ACTUATOR

Discharge Spout, 300mm Stroke

1шт.

7

84550645

SPOUT,615.5mm W x 920mm L

Discharge, Cover, Top

1шт.

8

84312367

BRACKET

Unload Tube, Support, RH

1шт.

9

84312369

BRACKET

Unload Tube, Support, LH

1шт.

10

84327223

PLATE

Fixing, Discharge Spout Top Cover To Spout

2шт.

11

87610697

RIVET,3/16" OD x 0.825" OAL

11шт.

12

84380852

SUPPORT

Boot Shims, 2.82mm Thick

3шт.

13

47446294

SUPPORT

Spout Shims, 2.82mm Thick

2шт.

14

87030775

BOLT,M8 x 38.1mm, Cl 10.9

6шт.

15

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

16

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

12шт.

17

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

2шт.

18

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

10шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

20

412027

CLEVIS PIN,M12 x 45mm OAL

1шт.

21

86639103

CLEVIS PIN,M12 x 90mm OAL

1шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

22шт.

23

47437518

SEAL

Rubber, 4.57mm Thick

1шт.

24

47445009

SEAL

450mm OAL x 490mm W

1шт.

25

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

19.05mm OD x 13.51mm ID x 17.5mm OAL

2шт.

26

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

28

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

30

47449506

SUPPORT

Boot, Discharge Spout

1шт.

31

47449507

SPOUT

Discharge

1шт.

32

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

33

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

Выбрано товаров: 33
