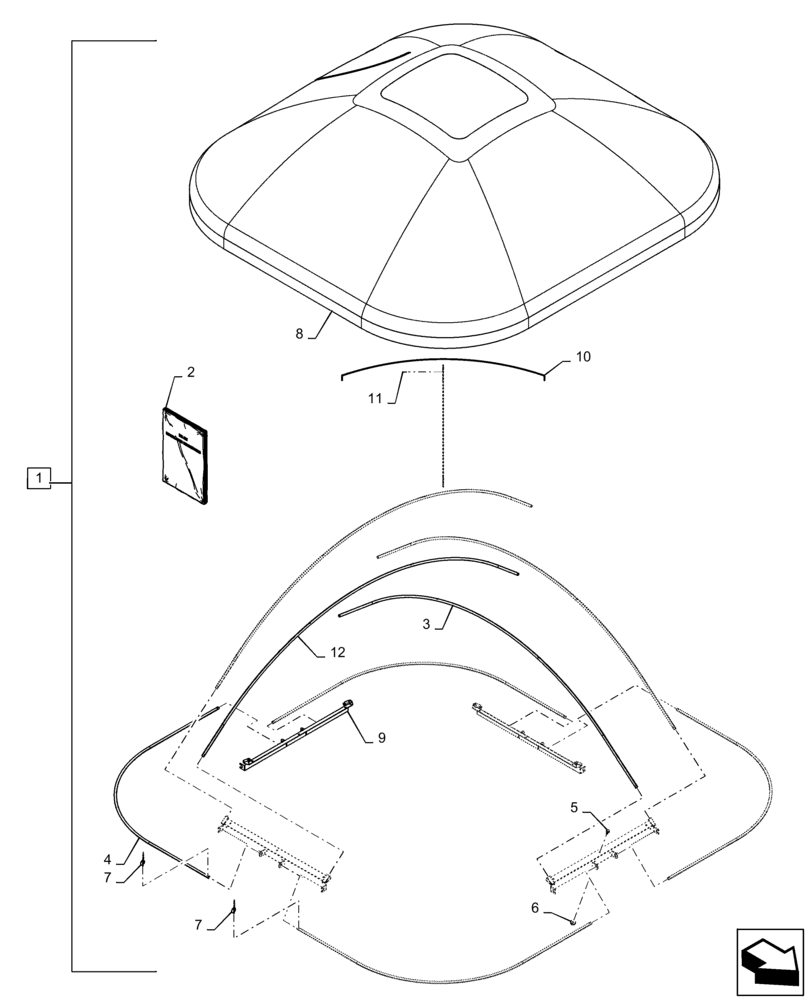

Запчасти Case IH 7230 (88.100.80[10]) - DIA KIT, GRAIN TANK, CANVAS (88) - ACCESSORIES

1

47437136

SERVICE KIT

Grain Tank Extension Canvas Assy, Incl 2 - 12

1шт.

2

47437384

INSTRUCTION

Instructions, Grain Tank Extension Canvas Assy

1шт.

3

84154939

PIPE

Front/ Rear Grain Tank Tarp

2шт.

4

84154938

PIPE

Corner Grain Tank Tarp

4шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

7

87106279

PIN,6.4mm OD

Klik, 54.7mm OAL x 6.4mm W

16шт.

8

84187374

CANVAS

Grain Tank, 11100L

1шт.

9

84154949

SUPPORT ASSY.

11100mm OAL

4шт.

10

47392219

CROSSBAR

Grain Tank, 95mm OD x 77.5mm ID x 143mm OAL

2шт.

11

86977785

COTTER PIN,M1.6 x 20mm

4шт.

12

84154940

PIPE

LH/ RH Grain Tank Tarp

2шт.
