Запчасти Case IH 7230 (88.100.73[12]) - DIA KIT, ADDITIONAL PRODUCTS, BEARING ASSY, CHOPPING UNIT (88) - ACCESSORIES

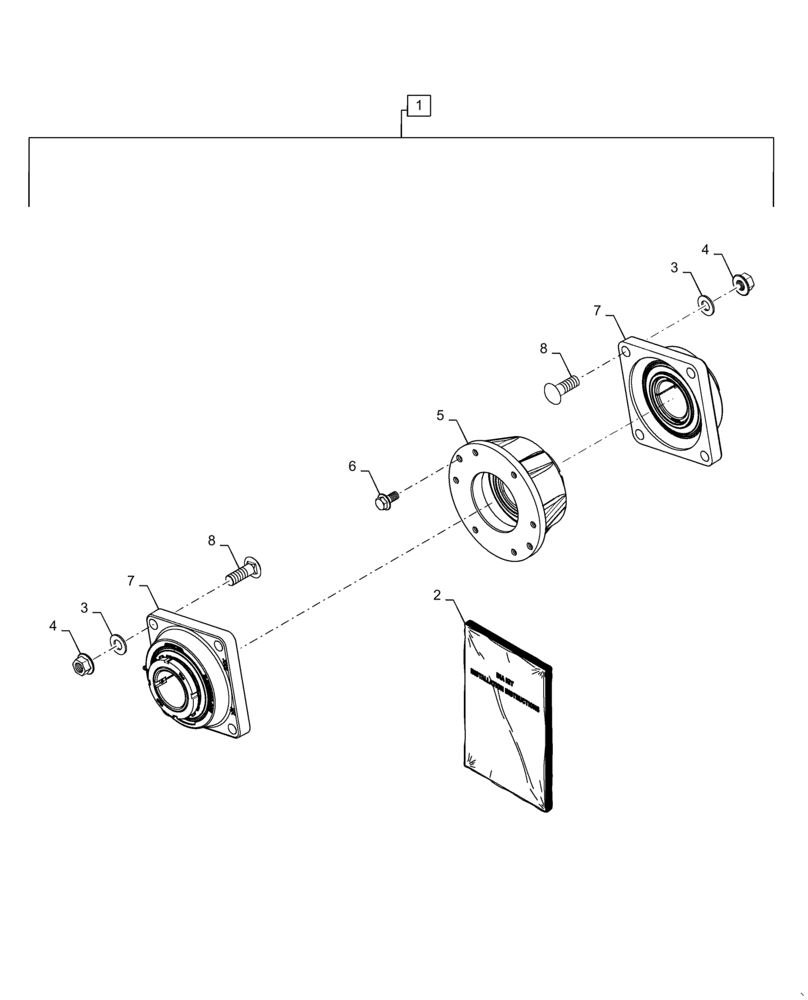

Схема запчастей Case IH 7230 - (88.100.73[12]) - DIA KIT, ADDITIONAL PRODUCTS, BEARING ASSY, CHOPPING UNIT (88) - ACCESSORIES
4
3
3
7
6
7
8
4
1
5
2
8

Артикул

Название

Примечание

Количество

1

47766358

KIT

Chopper Bearings, Upgrade, Incl 2 - 8

1шт.

2

47767862

INSTRUCTION

Kit, Chopper Bearings

1шт.

3

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

4

86512498

FLANGE NUT,M16 x 2, Cl 10

8шт.

5

47661876

BEARING ASSY

Chopper, RH

1шт.

6

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.

7

47663490

BEARING ASSY

Chopper, Ball

2шт.

8

87698768

CARRIAGE BOLT,M16 x 60.9mm, Cl 10.9

8шт.

Выбрано товаров: 8
