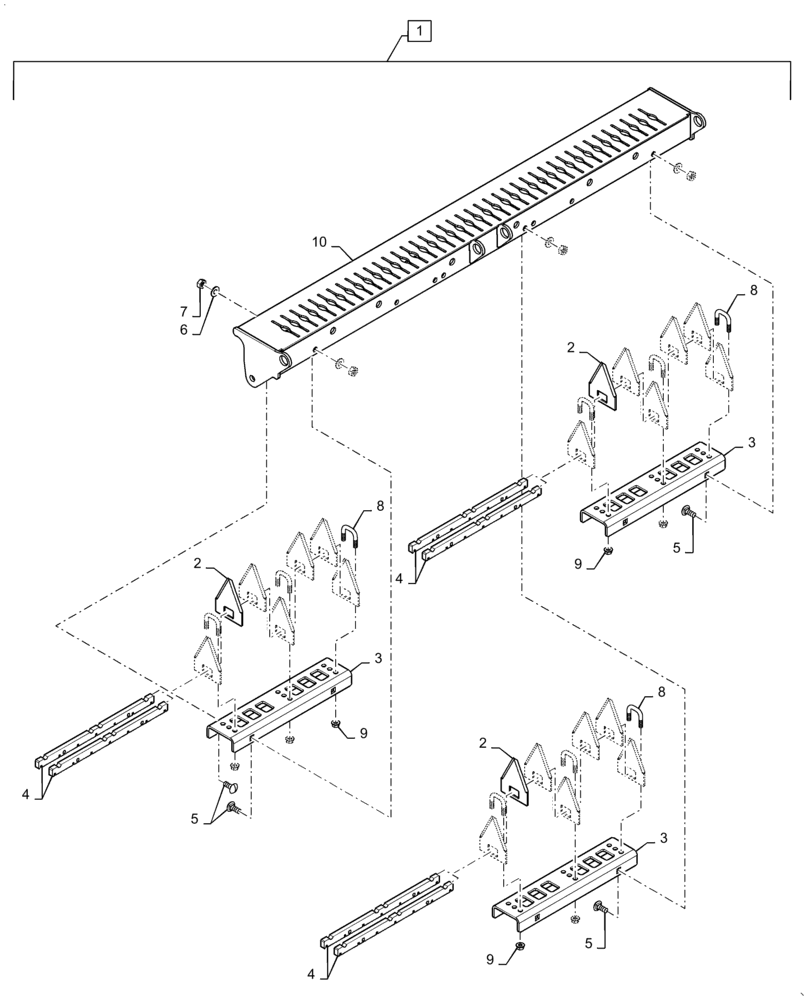

Запчасти Case IH 7230 (88.100.73[05]) - DIA KIT, KNIFE ASSY, STANDARD KNIFE (88) - ACCESSORIES

1

87585836

KNIFE ASSY

Standard, Incl 2 - 10

1шт.

2

87106692

KNIFE SECTION

Stationary, Straw Chopper

21шт.

3

87578084

SUPPORT ASSY.

Knife, Narrow

3шт.

4

87633175

RETAINER

Standard Knife, 339.5mm OAL x 19mm W

6шт.

5

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

7

100016

NUT,M10 x 1.5, Cl 8

12шт.

8

87391950

U-BOLT

M8 x 1.25, 20mm Of Thread, 27mm ID

9шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

10

87578082

FRAME

Knife Bar

1шт.
