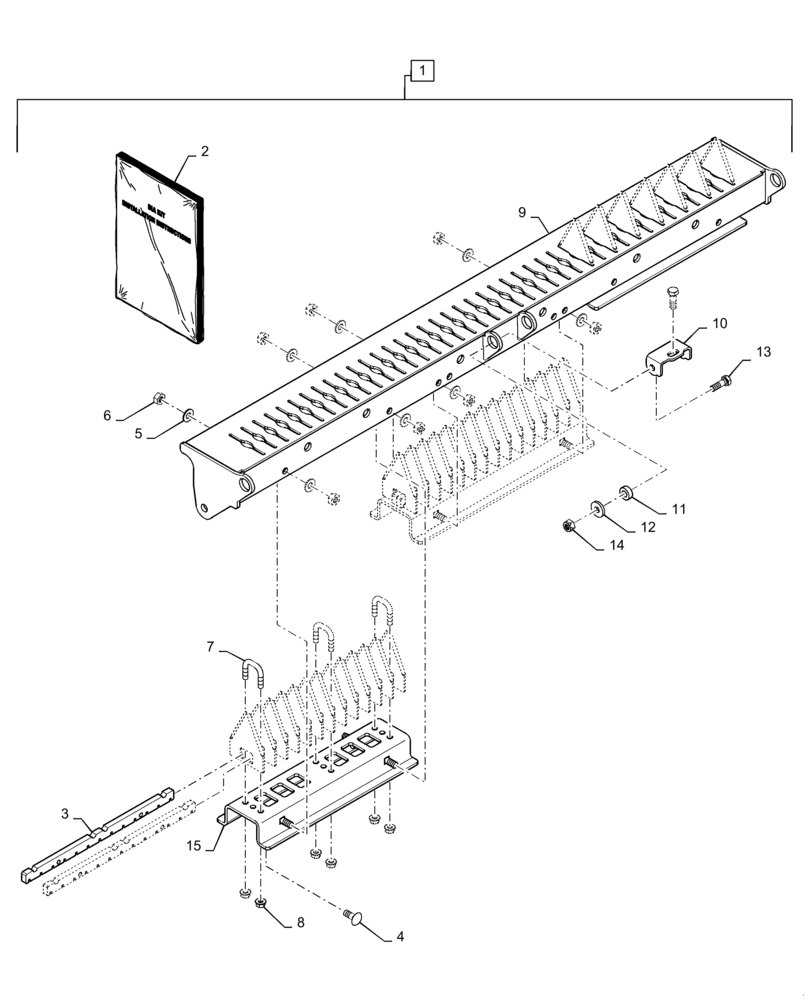

Запчасти Case IH 7230 (88.100.73[04]) - DIA KIT, STANDARD KNIFE (88) - ACCESSORIES

1

87670026

SERVICE KIT

Standard Knife Bar, W/ O Knives, Incl 2 - 15

1шт.

2

87670022

INSTRUCTION

Installation, Knife Bar Kit

1шт.

3

87633175

RETAINER

Standard, Knife, 339.5mm OAL x 19mm W

6шт.

4

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

6

100016

NUT,M10 x 1.5, Cl 8

12шт.

7

87391950

U-BOLT

M8 x 1.25, 20mm Of Thread, 27mm ID

9шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

9

87578082

FRAME

Knife Bar, Standard

1шт.

10

87592357

BRACKET

122.7mm OAL x 39.5mm W

1шт.

11

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

22.23mm OD x 11.15mm ID x 8mm W

2шт.

12

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

3шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

15

87578084

SUPPORT ASSY.

Knife, Narrow

3шт.
