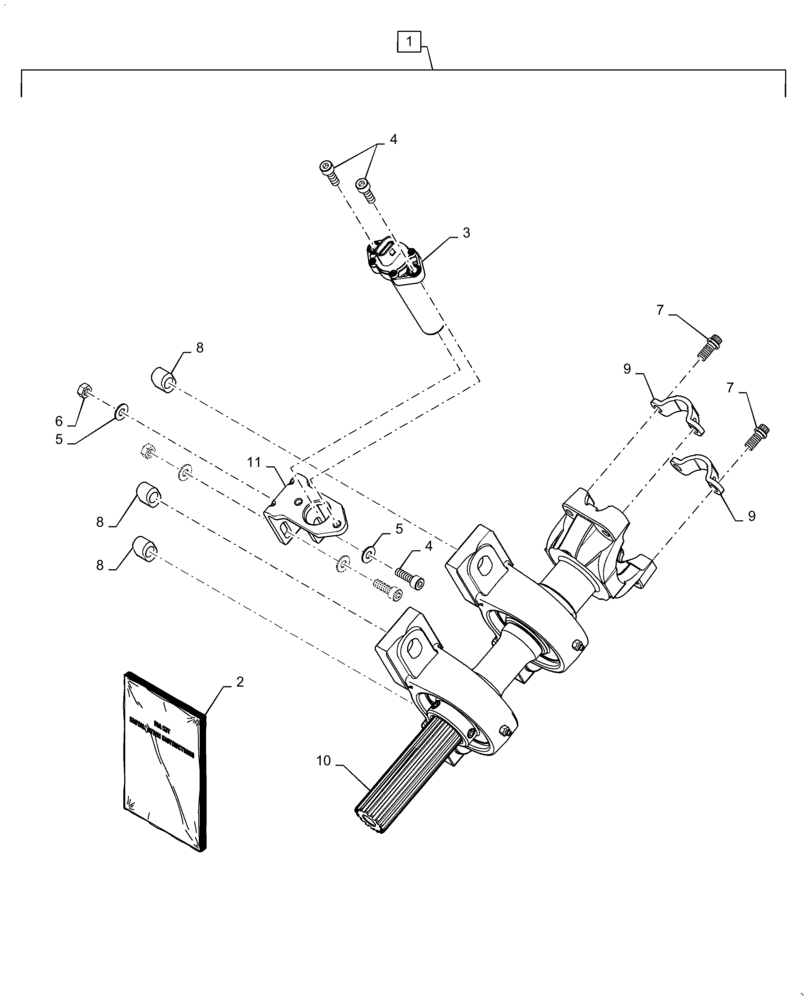

Запчасти Case IH 7230 (88.100.60[04]) - DIA KIT, FEEDER, CONTROL (88) - ACCESSORIES

1

47529640

SERVICE KIT

Feed Rate Control, Incl 2 - 11

1шт.

2

47529641

OPERATOR MANUAL

Feed Rate Control

1шт.

3

84310955

SENSOR

Force

1шт.

4

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

4шт.

8

84475437

SPACER

Alignment, 26.5mm OD x 12.3mm ID x 16.5mm W

4шт.

9

9672925

SECURING STRAP

Bearing, 73.2mm OAL x 22.4mm W

2шт.

10

84310953

SHAFT

Assy, Magnetized Sensor

1шт.

11

84352053

BRACKET

Force Sensor

1шт.
