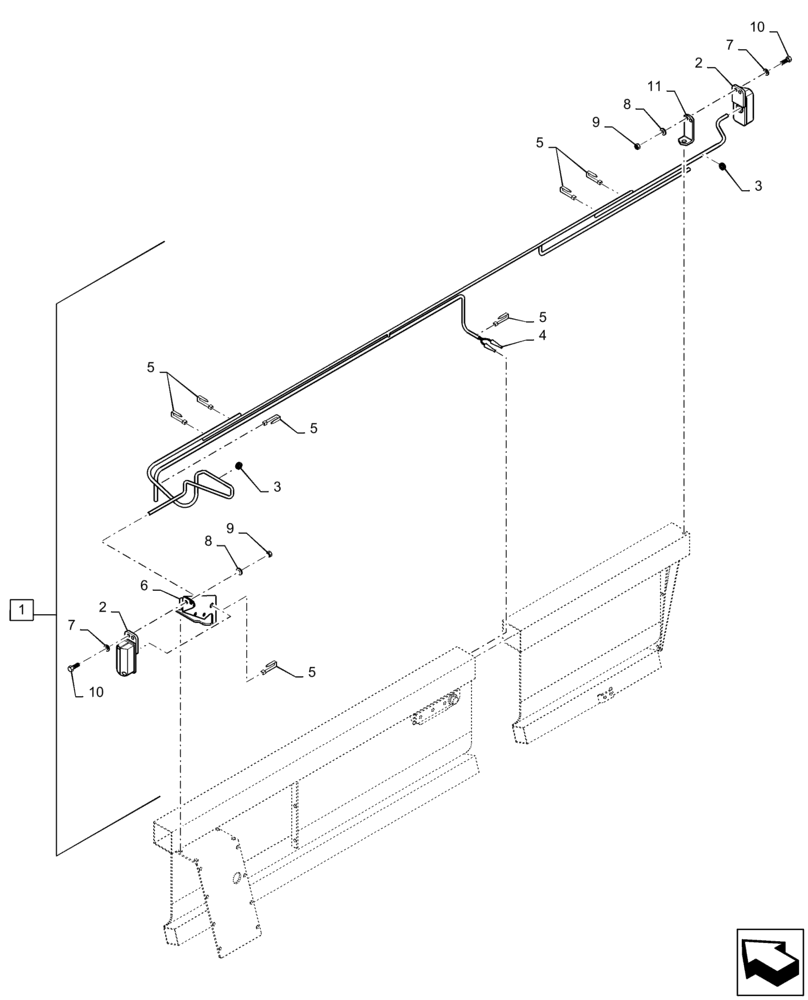

Запчасти Case IH 7230 (88.100.58[03]) - DIA KIT, HEADER, LIGHT (88) - ACCESSORIES

1

84050562

DIA KIT, HARVESTER

Grain Header Illumination, Incl 2 - 11

1шт.

2

449531

POSITION LAMP,Red

Assy, Side

2шт.

3

335315

GROMMET

12.5mm OAL x 6mm W

2шт.

4

84432334

WIRE HARNESS

Assy, Grain Header Illumination

1шт.

5

86566989

CABLE TIE,208mm L

9шт.

6

84432804

SUPPORT

Bracket, Grain Header Illumination Wire Harness

1шт.

7

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

4шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

4шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

84077733

BRACKET

Mounting, Lamp

1шт.
