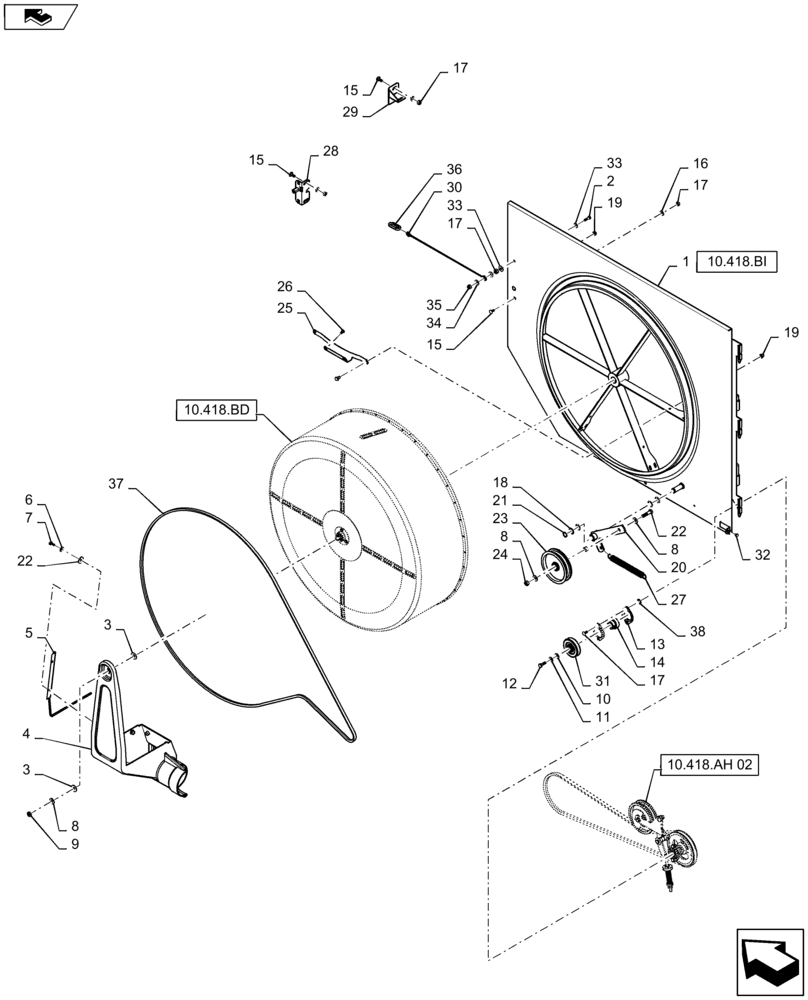

Запчасти Case IH 7230 (10.418.AH[01]) - ROTARY AIR SCREEN ASSY, 7230 ONLY (10) - ENGINE

1

84541889

SUPPORT

Rotary Air Screen Door

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

3

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

4

84403415

AIR DUCT

To Suction Fan

1шт.

5

87642393

BRUSH

Sucrose

1шт.

6

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

7

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

9

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

10

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

12

BER43139

BOLT

1шт.

13

86548974

FLANGE,Bearing

Spherical, 52mm

2шт.

14

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

17

9706690

NUT,M8 x 1.25, Cl 8

7шт.

18

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

19

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

8шт.

20

87552113

ARM ASSY.

Rotary Air Screen Tensioner

1шт.

21

370024

CIRCLIP,M20, Ext

1шт.

22

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

23

87552112

PULLEY

Suction Fan Idler, 159mm OD

1шт.

24

9706685

NUT,M12 x 1.75, Cl 8

1шт.

25

87550068

SUPPORT ASSY.

Suction Fan

1шт.

26

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

27

87647773

SPRING

Idler Tension, 183mm Free Length

1шт.

28

84431232

LATCH

Door Lock Bracket

1шт.

29

84424391

SUPPORT

Door Lock

1шт.

30

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

31

87552111

PULLEY

Rotary Air Screen Drive

1шт.

32

331233

PLUG

Door

1шт.

33

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

34

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

35

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

36

87107072

CHAIN LINK,44.299mm Pitch

Door Swing

1шт.

37

86514512

V-BELT,0.49" W x 142.50" L

Rotary Air Screen Drive

1шт.

38

87012484

SNAP RING,#31, Ext

2шт.
