Запчасти Case IH 7230 (88.100.55[11]) - DIA KIT, DISCHARGE SPOUT, SIGNAL, PLATE (88) - ACCESSORIES

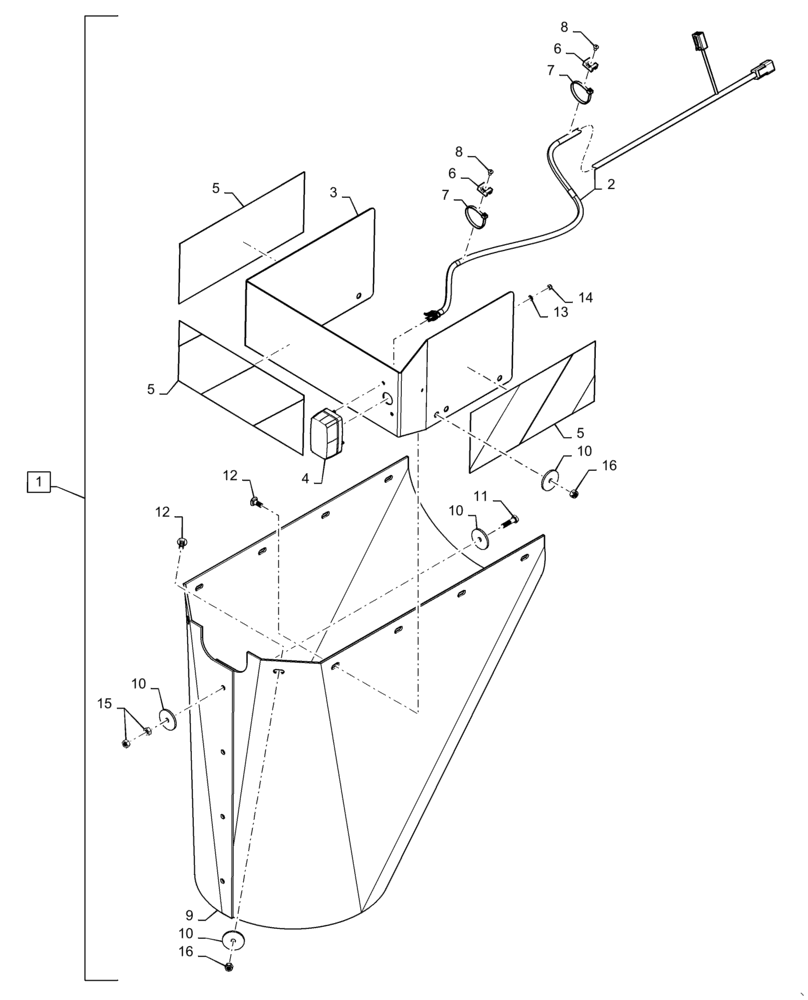

Схема запчастей Case IH 7230 - (88.100.55[11]) - DIA KIT, DISCHARGE SPOUT, SIGNAL, PLATE (88) - ACCESSORIES
10
7
12
1
5
13
14
5
3
6
16
11
9
6
16
15
7
10
2
10
8
4
8
10
5
12

Артикул

Название

Примечание

Количество

1

84158659

DIA KIT, HARVESTER

Vertical Discharge Unload Tube Signal Plate, Incl 2 - 16

1шт.

2

86610718

WIRE HARNESS

Assy, Signal Plate

1шт.

3

84452652

SUPPORT

Plate, Decal Mounting

1шт.

4

84429842

LAMP

Assy

1шт.

5

84441358

DECAL

Reflector, Red/ White

3шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

7

86566989

CABLE TIE,208mm L

2шт.

8

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

9

84064911

CANVAS,1288.3mm W x 1396.9mm L

Rubber Band, Discharge Spout

1шт.

10

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

18шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

10шт.

13

140014

WASHER,M5 x 10mm OD x 1mm Thk

2шт.

14

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

8шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

Выбрано товаров: 16
