Запчасти Case IH 7230 (88.100.48[03]) - DIA KIT, TRACK ASSY, HYDRAULIC LINE (88) - ACCESSORIES

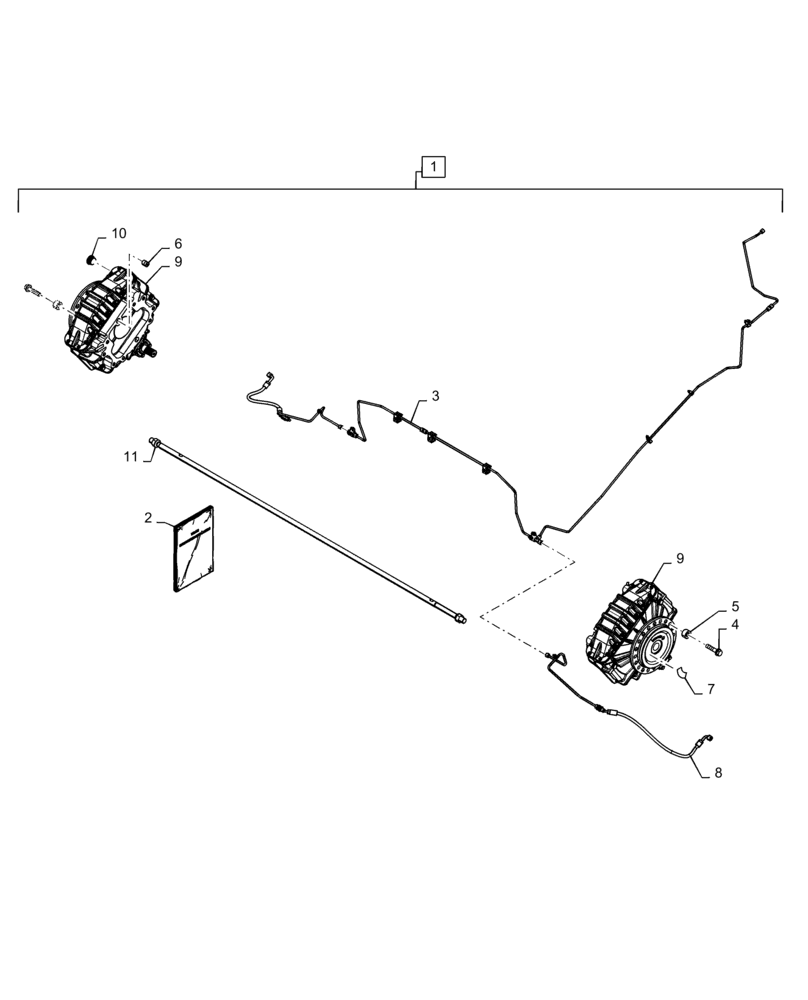

Схема запчастей Case IH 7230 - (88.100.48[03]) - DIA KIT, TRACK ASSY, HYDRAULIC LINE (88) - ACCESSORIES
9
3
6
7
8
5
1
10
11
4
9
2

Артикул

Название

Примечание

Количество

1

47614061

KIT

Track Installation, Hydraulics, Incl 2 - 11

1шт.

2

47612064

INSTRUCTION

Installation, Track

1шт.

3

47630766

KIT

Hydraulic Track Tubes, Common

1шт.

4

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

20шт.

5

84394484

SPACER,22.8mm ID x 50.3mm OD x 30mm

20шт.

6

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

7

87283497

DECAL

Front Wheel Torque

2шт.

8

84399244

KIT

36" Track, Hydraulics, Wide Frame

1шт.

9

84413261

GEAR REDUCTION UNIT

13/ 110 Track Final Drive

2шт.

10

84817215

PLUG,3/4"

3/4" Thread

2шт.

11

87748776

SERVICE KIT

Track Hardware

1шт.

Выбрано товаров: 11
