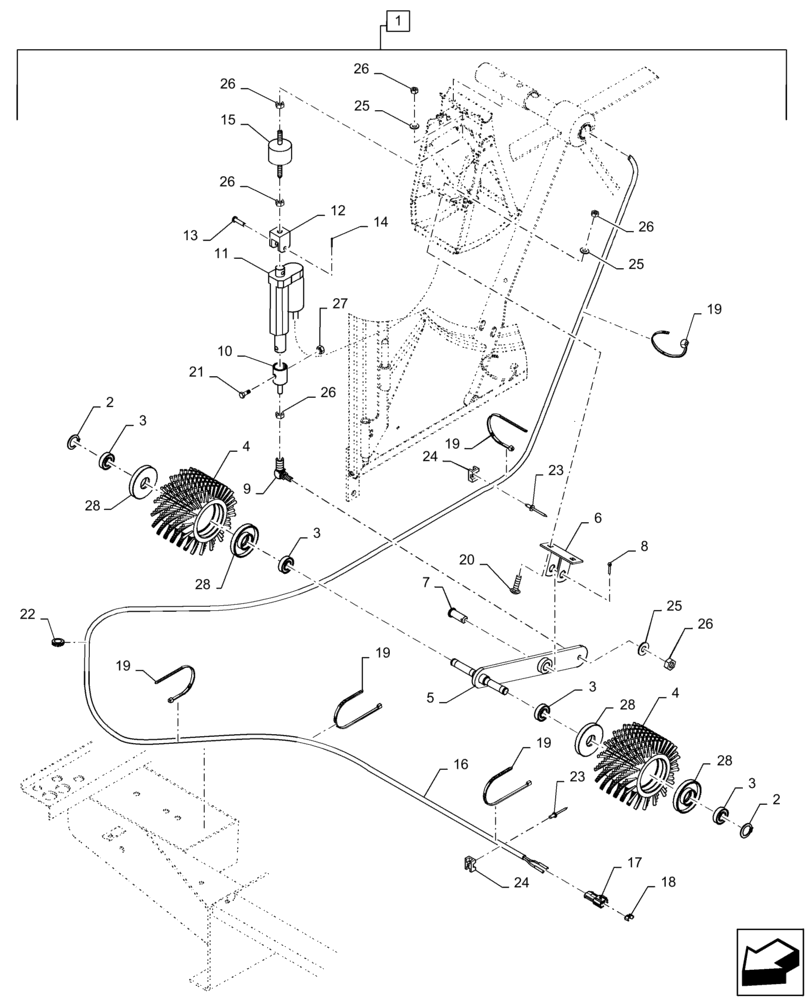

Запчасти Case IH 7230 (88.100.10[03]) - DIA KIT: BRUSH, ROTARY DUST SCREEN (88) - ACCESSORIES

1

84111565

KIT

Screen Brush, Incl 2 - 28

1шт.

2

NNA301615

SNAP RING

2шт.

3

9815813

BALL BEARING,15mm ID x 32mm OD x 9mm W

4шт.

4

84449076

BRUSH

Air Sceen

2шт.

5

84449090

LEVER

Brush

1шт.

6

84071754

SUPPORT

Brace

1шт.

7

84072127

PIN,15mm OD x 43mm L

Locking

1шт.

8

130007

COTTER PIN,M4 x 25

1шт.

9

412439

BALL JOINT

Swivel

1шт.

10

84071712

CLEVIS

Support

1шт.

11

84440048

ACTUATOR

Screen Brush

1шт.

11

84440048R

REMAN-ELECTRIC MOTOR

Screen Brush

1шт.

11

84440048C

CORE-ELECTRIC MOTOR

Return Number

1шт.

12

84026054

SUPPORT

Brace

1шт.

13

376876

CLEVIS PIN,6mm OD x 30mm L

1шт.

14

86977785

COTTER PIN,M1.6 x 20mm

1шт.

15

393802

DAMPER,40mm OD x 80mm L

1шт.

16

86608490

WIRE HARNESS

Rotary Dust Screen Brush

1шт.

17

86604176

ELEC CONNECTOR

Hydraulic

1шт.

18

86604177

PLUG

Connector

1шт.

19

86566989

CABLE TIE,208mm L

7шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

22

411809

GROMMET

Round

1шт.

23

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

2шт.

24

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Support

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

9706690

NUT,M8 x 1.25, Cl 8

7шт.

27

353308

NUT,M6 x 1.0, Cl 8

1шт.

28

84437302

BEARING HOUSING

32mm ID x 76mm OD x 12mm Thk

4шт.
