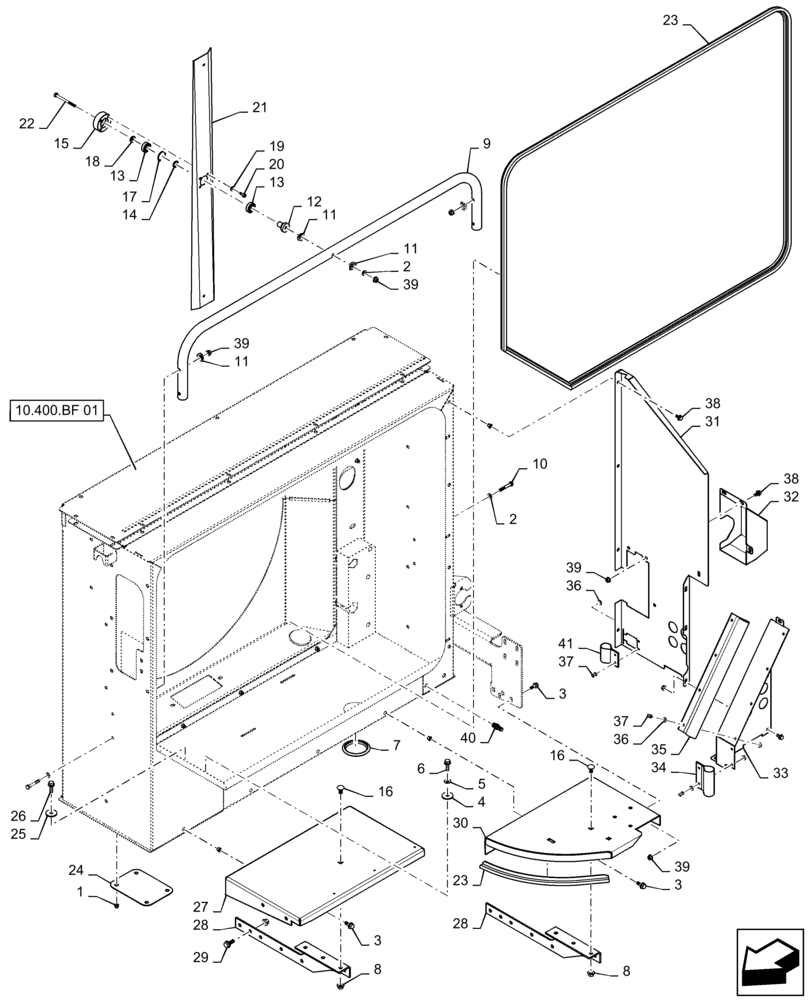

Запчасти Case IH 7230 (10.400.BF[03]) - COOLER ASSY, AIR DUCT, BOX 7230 (10) - ENGINE

1

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

14шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

3

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

4

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

7

87000778

PLUG,89mm OD

Clean Out

1шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

7шт.

9

87395329

TUBE,27.86 mm ID x 33.4 mm OD x 1457.4, 266.7 mm L

1шт.

10

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

11

333962

CLAMP

Band

6шт.

12

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

Fan

1шт.

13

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

14

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

15

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.

16

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

3шт.

17

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

18

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

20

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

4шт.

21

87720406

FAN BLADE

Cleaning

1шт.

22

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

1шт.

23

401209

SEAL PROTECTION

Trim Edge

1шт.

24

87550262

COVER PLATE

Cooler Bottom

1шт.

25

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

4шт.

26

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

27

84284696

PLATFORM

Rotary Air Screen

1шт.

28

84342089

BRACKET

Supporting

2шт.

29

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

30

84554234

PLATFORM

Rotary Air Screen

1шт.

31

84572678

COVER

Side

1шт.

32

84511333

COVER

Cap, Side

1шт.

33

84511331

COVER

Front

1шт.

34

84481341

RUBBER SEAL

Edge

1шт.

35

84481340

RUBBER SEAL

Edge

1шт.

36

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

14шт.

37

14642191

RIVET,Pop, 3.9mm OD x 14mm OAL

8шт.

38

87681207

BOLT,M8 x 24.1mm, Cl 10.9

11шт.

39

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

40

84559319

STUD,Captive Stud, M10 x 1.5

Captive

2шт.

41

84481342

SEAL

Edge

1шт.
