Запчасти Case IH 7230 (88.100.10[02]) - DIA KIT, GROUND PROTECTION (88) - ACCESSORIES

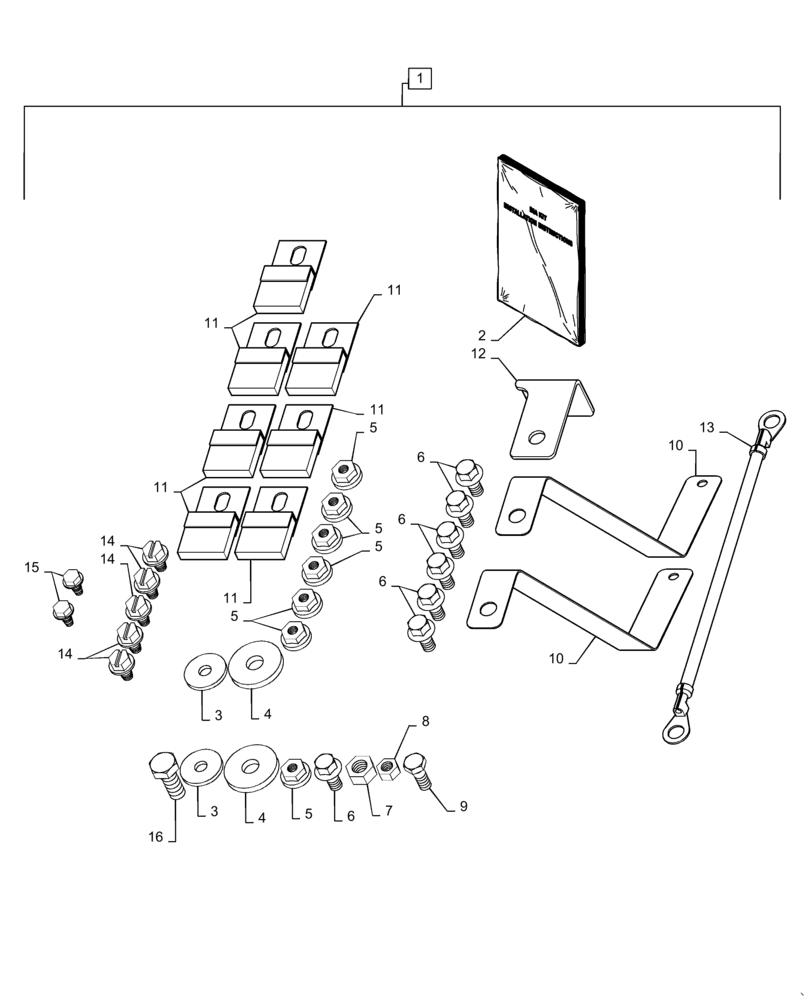

Схема запчастей Case IH 7230 - (88.100.10[02]) - DIA KIT, GROUND PROTECTION (88) - ACCESSORIES
16
11
6
14
5
4
6
13
11
3
6
7
8
9
14
1
11
5
11
11
3
14
2
5
12
15
5
6
10
4
10
5

Артикул

Название

Примечание

Количество

1

87557858

SERVICE KIT

Anti - Static, Incl 2 - 16

1шт.

2

84209496

INSTRUCTION

Anti - Static, Installation

1шт.

3

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

4

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

5

523282

SERRATED NUT,Flg, USR, 1/4"-20

7шт.

6

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

7шт.

7

9706690

NUT,M8 x 1.25, Cl 8

1шт.

8

9706755

NUT,M6, Cl 8

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

10

87553494

STRAP

Spreader Ground Protection

2шт.

11

87585241

BRUSH

46.9mm OAL x 25.4mm W

7шт.

12

87600126

BRACKET

Anti - Static Brush

1шт.

13

87643605

CABLE

Anti - Static, 200mm OAL

1шт.

14

84733

SELF-TAP SCREW,Hex, 1/4" OD x 3/8"

5шт.

15

281-2456

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 3/8"

2шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

Выбрано товаров: 16
