Запчасти Case IH 7230 (80.180.AR[04]) - VAR - 425345, 425345, 425347, 425348, 425349, 425350, 425353, 425356 - GEARBOX, HIGH SPEED, UPPER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

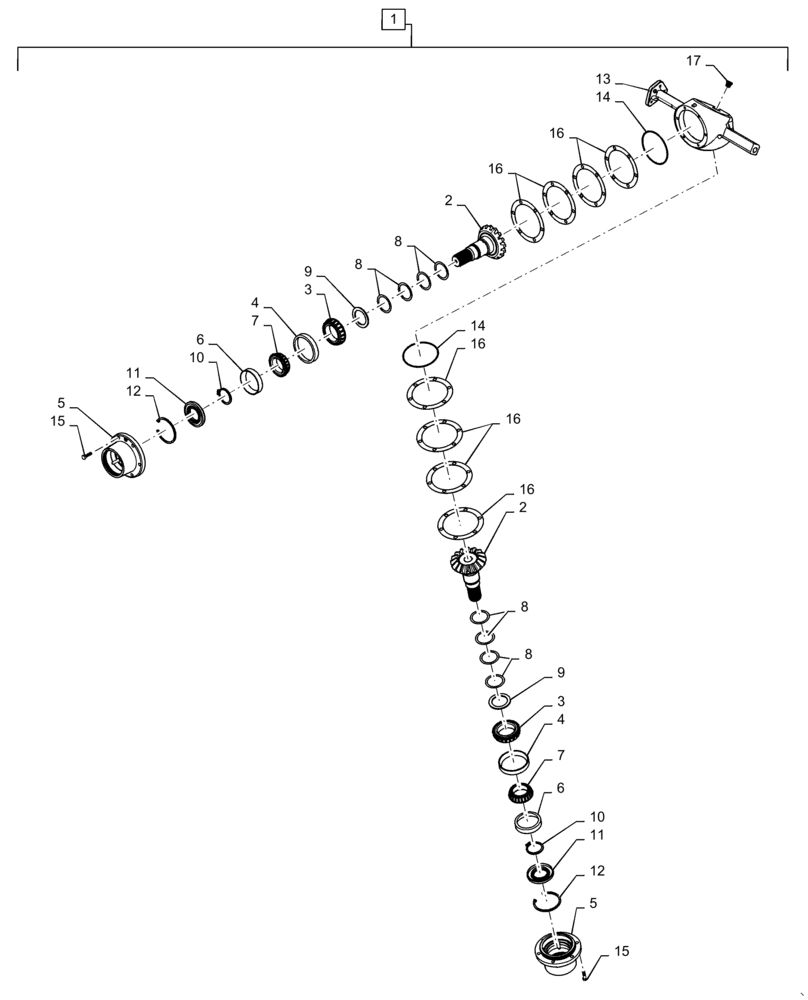

Схема запчастей Case IH 7230 - (80.180.AR[04]) - VAR - 425345, 425345, 425347, 425348, 425349, 425350, 425353, 425356 - GEARBOX, HIGH SPEED, UPPER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING
5
16
11
1
17
3
3
9
7
2
12
15
16
5
14
11
15
16
13
10
4
9
8
16
8
8
14
12
4
2
16
7
6
8
10
6

Артикул

Название

Примечание

Количество

1

84262051

GEARBOX ASSY

Upper, High Capacity, Incl 2 - 17

1шт.

2

84356777

BEVEL GEAR

Output to Unload Auger, 24 Tooth Shaft/16 Tooth Bevel

2шт.

3

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2шт.

4

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

5

84356776

HOUSING

Bearing, Upper Unloader

2шт.

6

181251C1

CUP,84mm OD x 22.2mm Thk

2шт.

7

181250C91

ROLLER BEARING,50mm ID x 22.2mm Thk

2шт.

8

87025487

SHIM,50mm ID x 62mm OD x 0.1mm Thk

1шт.

8

87033533

SHIM,50mm ID x 62mm OD x 0.15mm Thk

1шт.

8

87025488

SHIM,50mm ID x 62mm OD x 0.3mm Thk

1шт.

8

87025489

SHIM,50mm ID x 62mm OD x 0.5mm Thk

1шт.

9

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

2шт.

10

86625142

CIRCLIP,M50, External

2шт.

11

87610910

OIL SEAL,45mm ID x 85mm OD x 10mm Thk

2шт.

12

370021

SNAP RING,M85 x 3mm Thk, Internal

2шт.

13

84355215

CASTING

Upper Unload Gearbox

1шт.

14

14461480

O-RING,4.237" ID x 0.103" Thk

2шт.

15

84365541

BOLT,M8 x 1.25 x 35.45mm, Cl 10.9

12шт.

16

84555694

SHIM,116mm ID x 148mm OD x 0.30mm Thk

1шт.

16

84555695

SHIM,116mm ID x 148mm OD x 0.35mm Thk

1шт.

16

84555696

SHIM,116mm ID x 148mm OD x 0.40mm Thk

1шт.

16

84555697

SHIM,116mm ID x 148mm OD x 0.45mm Thk

1шт.

17

86598044

PLUG,Hex, M14 x 1.5 ORB

1шт.

Выбрано товаров: 23
