Запчасти Case IH 7230 (80.180.AR[02]) - VAR - 425329, 425330, 722740 - GEARBOX, STANDARD , UPPER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

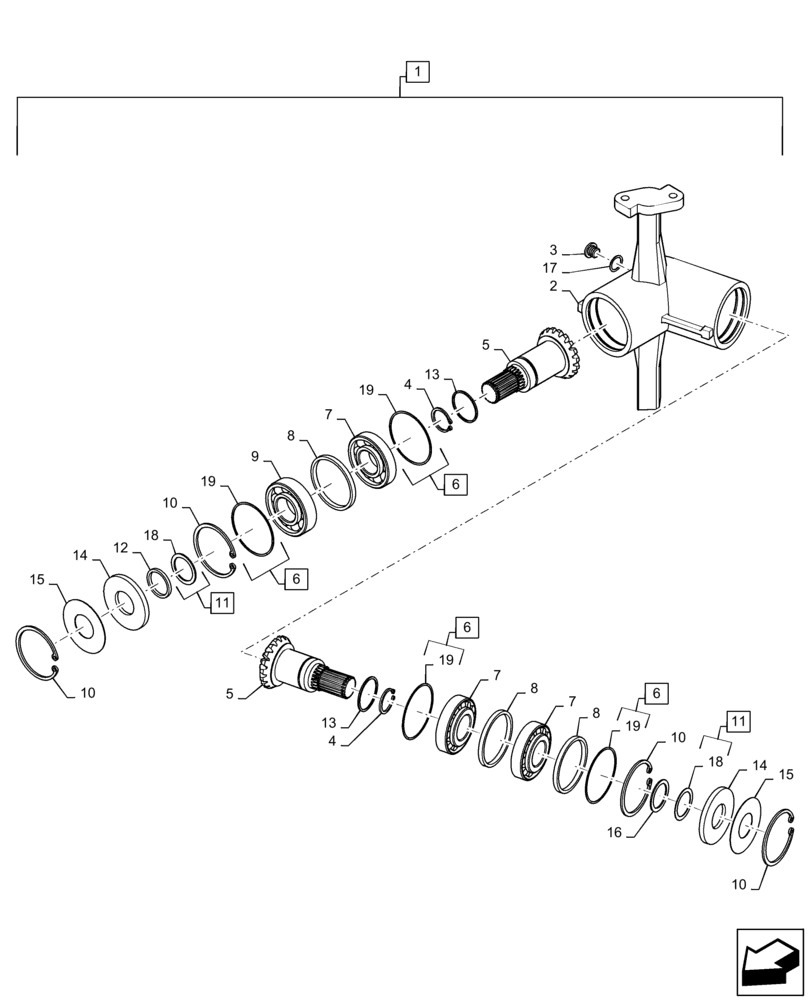

Схема запчастей Case IH 7230 - (80.180.AR[02]) - VAR - 425329, 425330, 722740 - GEARBOX, STANDARD , UPPER, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING
1
13
11
7
19
19
9
8
4
6
12
2
18
7
10
19
10
7
18
15
3
5
14
11
13
10
17
8
10
6
8
5
6
14
19
6
15
4
16

Артикул

Название

Примечание

Количество

1

87331084

GEARBOX

Upper Unload Gearbox, Incl 2 - 17

1шт.

1

87331084R

REMAN-GEARBOX

Upper Unload Gearbox

1шт.

1

87331084C

CORE-GEARBOX

Return Number

1шт.

2

87331121

HOUSING

Upper Unload Gearbox

1шт.

3

84437088

PLUG,3/8" Gas

1шт.

4

87349260

SNAP RING,M34, External

2шт.

5

87331114

BEVEL GEAR

Output to Unload Auger, 24 Tooth Shaft/15 Tooth Bevel, 161mm OAL

2шт.

6

87346736

SHIM KIT

Incl 19

4шт.

7

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

3шт.

8

87332420

SPACER, RING

94mm ID x 99.9mm OD x 5mm OAL

3шт.

9

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

1шт.

10

370026

SNAP RING,M100 x 3mm Thk, Internal

4шт.

11

87332423

SHIM KIT

Incl 18

2шт.

12

87345894

SHIM,55mm ID x 68mm OD x 3mm Thk

1шт.

13

800-5155

SNAP RING,M55 x 3mm Thk, External

2шт.

14

87331115

SEAL,55mm ID x 100mm OD x 10mm Thk

55mm ID x 100mm OD x 10mm Thk

2шт.

15

87332418

WASHER,55.5mm ID x 99.9mm OD x 1mm Thk

2шт.

16

87345893

SHIM,55mm ID x 68mm OD x 1mm Thk

1шт.

17

9511034

SEAL

18.2mm ID x 21.9mm OD x 1.5mm Thk

1шт.

18

87345883

SHIM,55mm ID x 68mm OD x 0.1mm Thk

1шт.

18

87345884

SHIM,55mm ID x 68mm OD x 0.15mm Thk

1шт.

18

87345889

SHIM,55mm ID x 68mm OD x 0.3mm Thk

1шт.

18

87345890

SHIM,55mm ID x 68mm OD x 0.5mm Thk

1шт.

19

87346738

SHIM,94.2mm ID x 99.8mm OD x 0.3mm Thk

1шт.

19

87346739

SHIM,94.2mm ID x 99.8mm OD x 0.35mm Thk

1шт.

19

87346740

SHIM,94.2mm ID x 99.8mm OD x 0.4mm Thk

1шт.

19

87346741

SHIM,94.2mm ID x 99.8mm OD x 0.5mm Thk

1шт.

Выбрано товаров: 27
