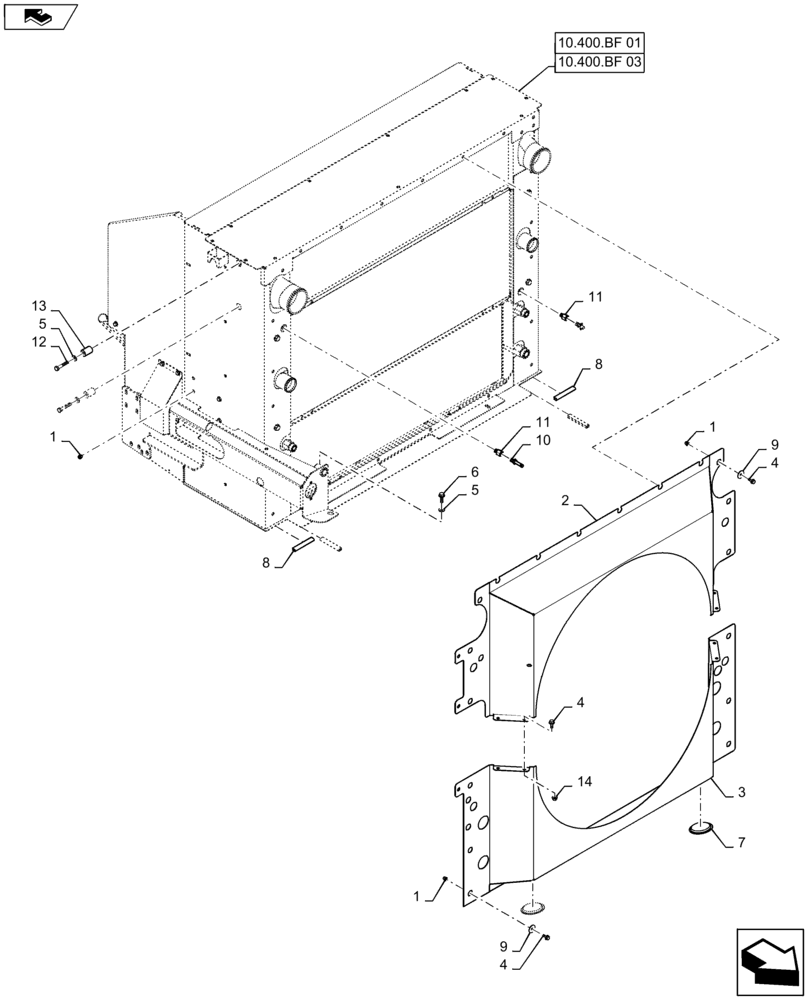

Запчасти Case IH 7230 (10.400.BF[02]) - COOLER ASSY., AIR DUCT, OIL COOLER 7230 , SHROUD (10) - ENGINE

1

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

16шт.

2

87576498

SHROUD

Top

1шт.

3

84554239

SHROUD

Bottom

1шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

26шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

7

87000778

PLUG,89mm OD

Cleanout

2шт.

8

291186

PROTECTION STRIP,9.9mm W

Edge Trim

1шт.

9

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

22шт.

10

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

11

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

12

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

13

87735597

BUSHING

Rubber

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
