Запчасти Case IH 7230 (80.180.AQ[07]) - VAR - 425353, 425356 - UNLOADING TUBE, HIGH SPEED, FOLDING (80) - CROP STORAGE/UNLOADING

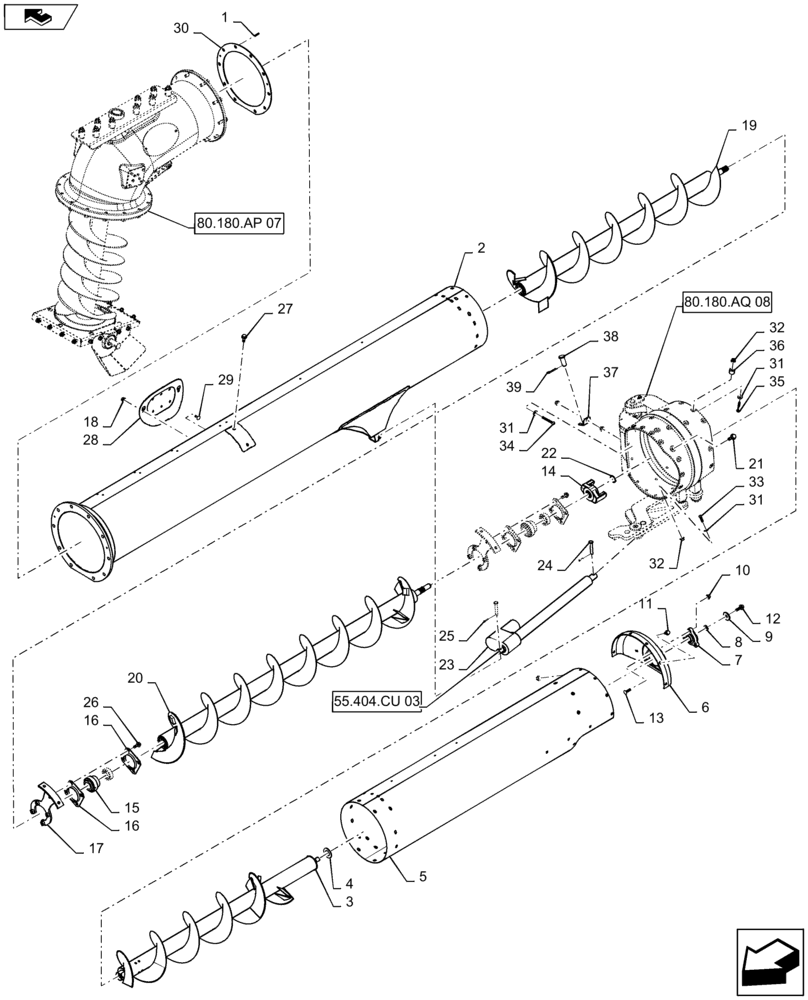

Схема запчастей Case IH 7230 - (80.180.AQ[07]) - VAR - 425353, 425356 - UNLOADING TUBE, HIGH SPEED, FOLDING (80) - CROP STORAGE/UNLOADING
21
28
30
17
8
16
38
4
31
11
29
10
20
33
34
35
16
3
6
15
18
31
5
22
37
9
2
14
55.404.cu 03
12
32
31
27
25
39
80.180.aq 08
23
7
36
32
1
13
24
19
26
80.180.ap 07

Артикул

Название

Примечание

Количество

1

86543705

SLOTTED PIN,M6 x 30mm OAL

2шт.

2

47439287

UNLOADING TUBE

Inner, Folding

1шт.

3

47445370

AUGER

Outer Fold, Extended Wear

1шт.

4

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

1шт.

5

47407783

UNLOADING TUBE

Outer Fold

1шт.

6

84416907

COVER

End Cap

1шт.

7

84489731

BALL BEARING,30mm ID

30mm Bore

1шт.

8

12648501

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

9

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

10

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

11

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

12

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

1шт.

13

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

3шт.

14

47514300

COUPLING,24T

Driver, 24 Tooth Spline

1шт.

15

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

41mm ID x 85mm OD

2шт.

16

86979948

FLANGE

85mm Spherical

4шт.

17

47392729

BRACKET

Beraing Locating

2шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

19

47395188

AUGER

Inner Fold, Extended Wear, Combine End

1шт.

20

47476066

AUGER

Inner Fold, Extended Wear, Middle

1шт.

21

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

22

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

23

47389398

ACTUATOR

Unloading Tube Fold

1шт.

24

87301316

CLEVIS PIN,M12 x 75mm OAL

2шт.

25

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

26

87343550

FLANGE BOLT,Hex, M12 x 25mm

8шт.

27

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

28

84307048

CAP COVER

Unload Tube, Side

1шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

47439284

SHIM,389.6mm ID x 499.5mm OD x 4.37mm Thk

5mm Thick

1шт.

31

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

35шт.

32

86050279

FLANGE NUT,M10 x 1.5, Cl 10

36шт.

33

47437572

SCREW,M10 x 1.5 x 30mm, Cl 10.9

10шт.

34

47437584

SCREW,M10 x 1.25 x 80mm, Cl 10.9

2шт.

35

47437581

SCREW,M10 x 1.25 x 60mm, Cl 10.9

23шт.

36

47446371

SPACER

22.5mm Tall

21шт.

37

47446521

ANGLE

Pin Retaining

1шт.

38

84427845

CLEVIS PIN,20mm OD x 61mm L

1шт.

39

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

1шт.

Выбрано товаров: 39
