Запчасти Case IH 7230 (80.180.AQ[04]) - VAR - 425345, 425347, 425348, 425350 - UNLOADING TUBE, HIGH SPEED, AUGER ASSY, 6.4M (21 FT) (80) - CROP STORAGE/UNLOADING

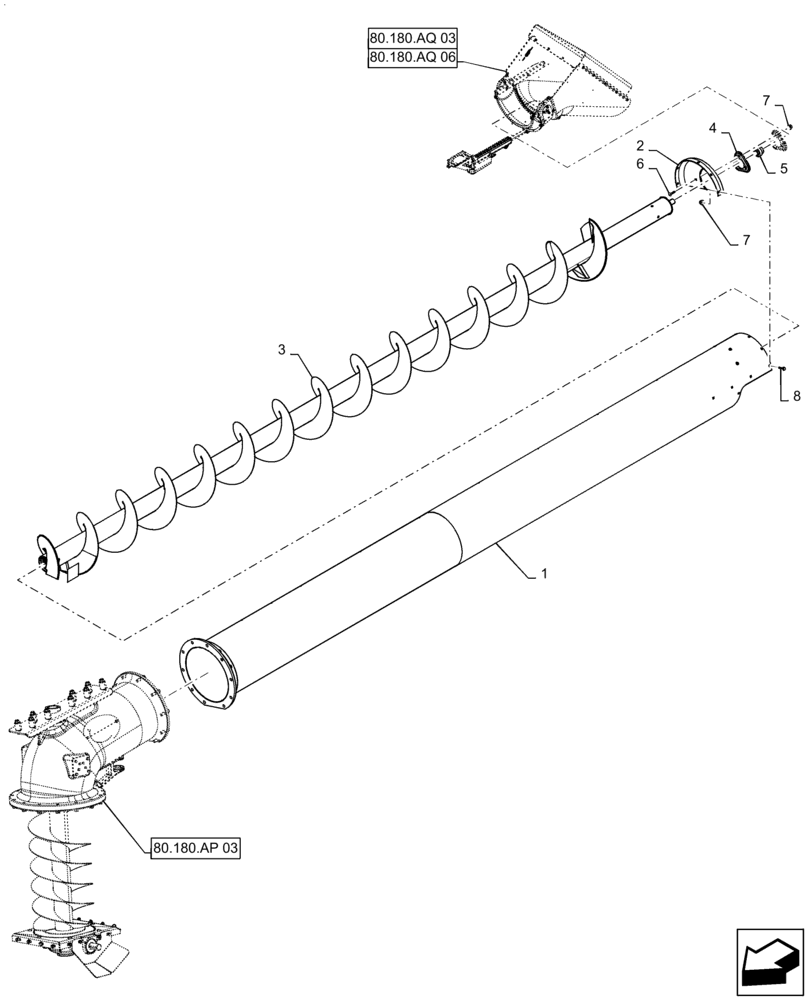

Схема запчастей Case IH 7230 - (80.180.AQ[04]) - VAR - 425345, 425347, 425348, 425350 - UNLOADING TUBE, HIGH SPEED, AUGER ASSY, 6.4M (21 FT) (80) - CROP STORAGE/UNLOADING
7
3
8
2
6
80.180.aq 06
5
7
1
4
80.180.ap 03
80.180.aq 03

Артикул

Название

Примечание

Количество

1

47405760

UNLOADING TUBE

High Capacity, 21FT

1шт.

2

84416907

COVER

End Cap

1шт.

3

47373693

AUGER

High Capacity, Standard Wear, - VAR - 425345, 425348, Serial Range: -YGG231218

1шт.

3

47910733

AUGER

High Capacity, Standard Wear, 8 Spline - VAR - 425345, 425348, Start Serial: YGG231219

1шт.

3

47373691

AUGER

High Capacity, Extended Wear, - VAR - 425347, 425350, Serial Range: -YGG231218

1шт.

3

47897750

AUGER

High Capacity, Extended Wear, 8 Spline - VAR - 425347, 425350, Start Serial: YGG231219

1шт.

4

84414986

FLANGE

62mm ID x 8.73mm Thk

2шт.

5

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

1шт.

6

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

Выбрано товаров: 11
