Запчасти Case IH 7230 (80.180.AP[05]) - VAR - 425348 - UNLOADING TUBE, HIGH SPEED, EXTENSION, ASSY (80) - CROP STORAGE/UNLOADING

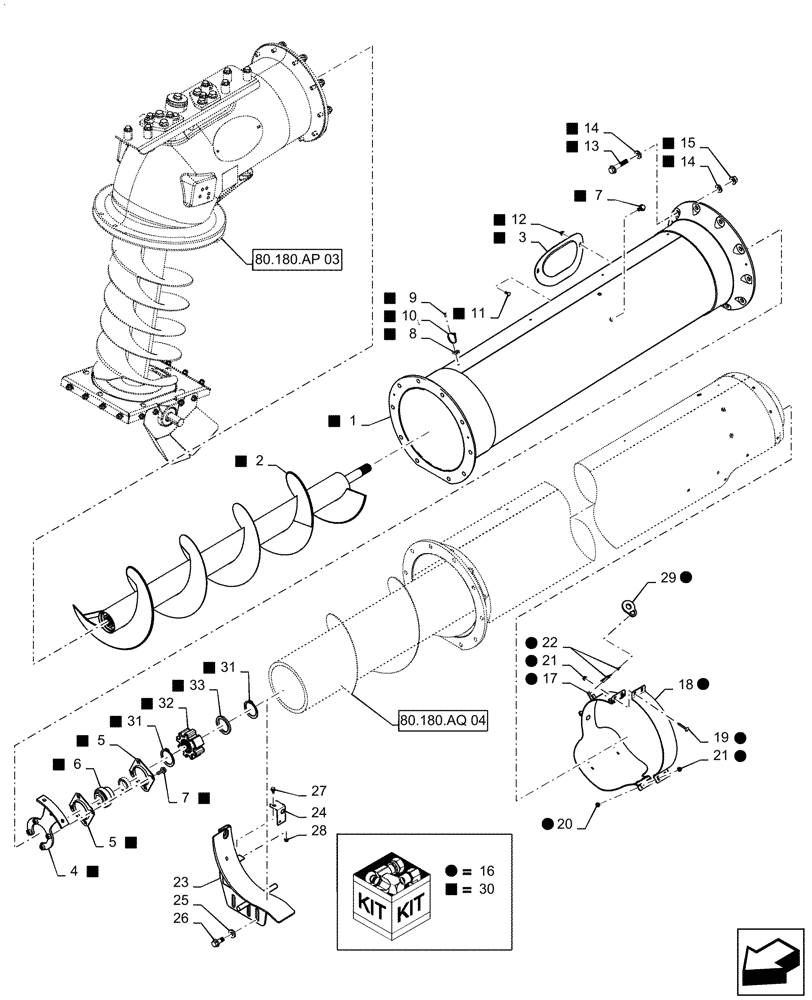

Схема запчастей Case IH 7230 - (80.180.AP[05]) - VAR - 425348 - UNLOADING TUBE, HIGH SPEED, EXTENSION, ASSY (80) - CROP STORAGE/UNLOADING
80.180.ap 03
33
30
16
17
30
23
27
30
30
22
30
21
8
16
30
16
16
5
25
24
28
21
12
7
9
30
6
16
19
16
30
30
16
15
20
5
30
14
13
11
30
7
16
10
3
31
30
26
14
30
30
16
32
31
30
30
30
30
29
30
30
1
30
16
30
30
18
4
2
30
80.180.aq 04

Артикул

Название

Примечание

Количество

1

84536432

UNLOADING TUBE

High Capacity Extension

1шт.

2

47395184

AUGER

Standard Wear, - VAR - 425348, Serial Range: -YGG231218

1шт.

2

47910821

AUGER

Standard Wear, - VAR - 425348, Start Serial: YGG231219

1шт.

2

47395186

AUGER

Extended Wear, - VAR - 425350, Serial Range: -YGG231218

1шт.

2

47826369

AUGER

Extended Wear, - VAR - 425350, Start Serial: YGG231219

1шт.

3

84307048

CAP COVER

Side, 280mm OD x 2.14mm Thk

1шт.

4

47392729

BRACKET

Bearing

1шт.

5

86979948

FLANGE

85mm ID x 15.5mm Thk

2шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

Extension

1шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

10

86566989

CABLE TIE,208mm L

5шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

47411044

FLANGE BOLT,M16 x 95.4mm, Full Thd, Cl 10.9

10шт.

14

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

16

47839523

CLAMP BRACKET

Assy, Unload Tube, Upgrade

1шт.

16

47649487

KIT

Unload Tube Band, Incl 17 - 22, 29

1шт.

17

47649339

BAND

Unload Tube, 388.8mm ID

1шт.

18

84315380

BAND

Unload Tube, 75mm W x 520.4mm OAL x 3.25mm Thk

1шт.

19

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

22

47619489

PIN

Klik, Quick Connect, 7.94mm OD

1шт.

23

84485433

CRADLE

Tube Saddle

1шт.

24

47360554

BRACKET

Supporting

1шт.

25

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

3шт.

26

87698849

BOLT,M16 x 50mm, Cl 10.9

3шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

28

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

29

47771442

WASHER

Unload Tube Securing, 21mm ID x 10.668mm Thk

1шт.

30

47826371

KIT

VAR - 425350 - Auger Extension, Start Serial: YGG231219

1шт.

31

370006

SNAP RING,M40, Ext

, Start Serial: YGG231219

2шт.

32

47745647

COUPLING

Course, Start Serial: YGG231219

1шт.

33

47832557

SPACER

Hub, Start Serial: YGG231219

1шт.

Выбрано товаров: 37
